Description of automatic coil winding machine ZPX500-3

Automatic coil winding machine ZPX500-3 is a high effective wire winding equipment. This kind of automatic coil winding machine can wind three coils at the same time and the maximum height of each coil can reach 500mm. Moreover, the automatic coil winding machine can also be used to wind two coils at the same time and one coil. The automatic coil winding machine is provided with servo motor to drive the wire guides, which makes the machine lay the wire precisely. With a control system based on PLC, the automatic coil winding machine is with high automation. The foot pedal of the automatic coil winding machine can be used to start or stop the machine and switch the rotating direction if necessary. With HMI and a touch screen, the coil winding machine can be operated very easily.

Main features of automatic coil winding machine ZPX500-3

• Slow starting
• Smooth running
• Full function
• Servo motor driven wire guide
• Simple operation, accuracy and reliability
• High automation

Technical parameters of automatic coil winding machine ZPX500-3

Typical standard specifications of automatic coil winding machine ZPX500-3 are shown below, however the coil winding machine can also be manufactured as requested.

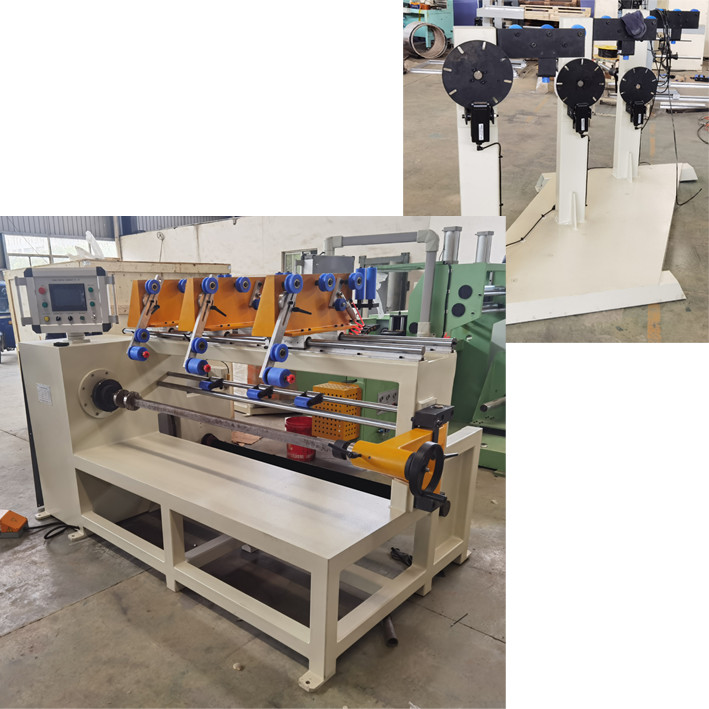

Fig 1: Automatic coil winding machine ZPX500-3's full view

Fig 2: Automatic coil winding machine ZPX500-3's coil stand
