Description of automatic coil winding machine ZPX500-3

Automatic coil winding machine ZPX500-3 is a high effective wire winding machine. This kind of automatic coil winding machine can wind three coils at the same time and the maximum height of each coil can reach 500mm. Moreover, the automatic coil winding machine can also be used to wind two coils at the same time and one coil with higher coil. The automatic coil winding machine is provided with HMI and PLC control system, which guarantees that the coil winding machine can be operated very easily.

Main features of automatic coil winding machine ZPX500-3

• Slow starting
• Smooth running
• Full function
• Servo motor driven wire guide
• Simple operation, accuracy and reliability
• High automation

Technical parameters of automatic coil winding machine ZPX500-3

Typical standard specifications of automatic coil winding machine ZPX500-3 are shown below and the coil winding machine can also be manufactured as requested.

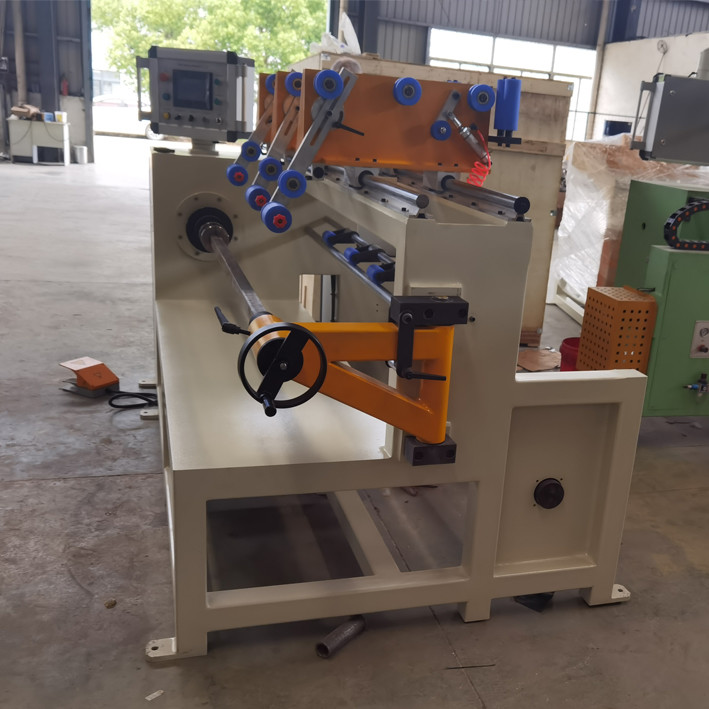

Fig 1: Automatic coil winding machine ZPX500-3's full view

Fig 2: Automatic coil winding machine ZPX500-3's coil stand
