High Precision Transformer Core Cutting Machine 120m Per Minute

High Precision Transformer Core Cutting Machine

Description of transformer core cutting machine HJX400

Transformer core cutting machine HJX400 is a special cutter, which is mainly used to cut silicon steel strip to make transformer core outer legs, yokes and other similar products. The transformer core cutting machine is also called cut to length line. This kind of cut to length line can cut different thickness silicon steel strip from 0.23mm to 0.35mm, and can cut the strip at the angle of 45 degree and 135 degree and make a V notching on the strip. With PLC control system, the transformer core cutting machine can be operated easily. The transformer core cutting machine features high speed, high stable performance, high precision, and so on.

Main parameters of transformer core cutting machine HJX400

The standard specifications of transformer core cutting machine HJX400 is shown below, however, the core cutting machine can also be manufactured as requested.

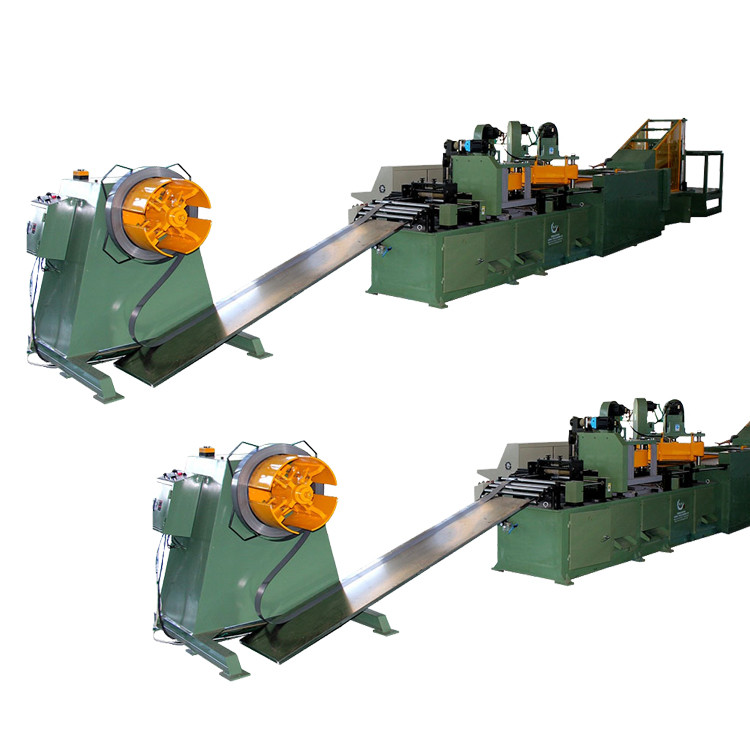

Fig 1: Transformer core cutting machine HJX400's full view

Fig 2: Transformer core cutting machine HJX400's side view

fIG
