High Precision Transformer Core Cutting Machine 120m Per Minute

High Precision Transformer Core Cutting Machine 120m Per Minute

High Precision Transformer Core Cutting Machine 120m Per Minute
High Precision Transformer Core Cutting Machine 120m Per Minute

Large Image :  High Precision Transformer Core Cutting Machine 120m Per Minute Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: HJX400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Cut To Length Line Strip Width: 40 ~ 400mm
Strip Thickness: 0.23 ~ 0.35mm Strip Length: 350 ~ 9999mm
Speed: 120m Per Minute Motor Power: 9kw
Color: As Requested Warranty Period: 12 Months
High Light:

High Speed Transformer Core Cutting Machine

,

High Precision Transformer Core Cutter

,

120m Per Minute Core Cutting Machine

High Precision Transformer Core Cutting Machine





Description of transformer core cutting machine HJX400



Transformer core cutting machine HJX400 is a special cutter, which is mainly used to cut silicon steel strip to make transformer core outer legs, yokes and other similar products. The transformer core cutting machine is also called cut to length line. This kind of cut to length line can cut different thickness silicon steel strip from 0.23mm to 0.35mm, and can cut the strip at the angle of 45 degree and 135 degree and make a V notching on the strip. With PLC control system, the transformer core cutting machine can be operated easily. The transformer core cutting machine features high speed, high stable performance, high precision, and so on.





Main parameters of transformer core cutting machine HJX400



The standard specifications of transformer core cutting machine HJX400 is shown below, however, the core cutting machine can also be manufactured as requested.

Technical Specifications HJX400
Silicon steel thickness 0.23 ~ 0.35mm
Steel width 40 ~ 400mm
Cutting length 350 ~ 9999mm
Feeding speed 120 m/min
Cutting angle tolerance ±0.025°
Cutting length tolerance ±0.10mm
Cutting burring ≤0.02mm
Total power 9kw



High Precision Transformer Core Cutting Machine 120m Per Minute 0

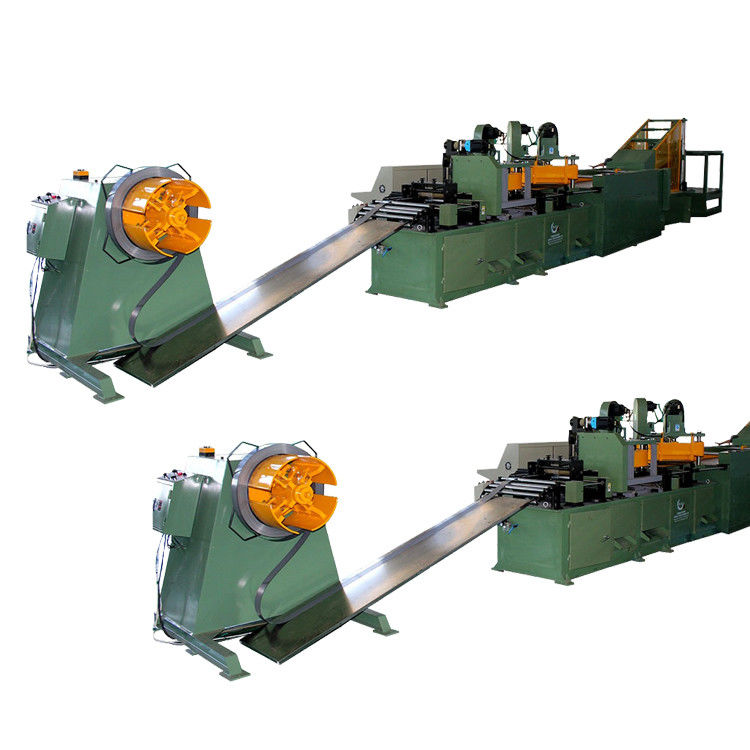

Fig 1: Transformer core cutting machine HJX400's full view



High Precision Transformer Core Cutting Machine 120m Per Minute 1

Fig 2: Transformer core cutting machine HJX400's side view



High Precision Transformer Core Cutting Machine 120m Per Minute 2High Precision Transformer Core Cutting Machine 120m Per Minute 3High Precision Transformer Core Cutting Machine 120m Per Minute 4High Precision Transformer Core Cutting Machine 120m Per Minute 5High Precision Transformer Core Cutting Machine 120m Per Minute 6High Precision Transformer Core Cutting Machine 120m Per Minute 7High Precision Transformer Core Cutting Machine 120m Per Minute 8















fIG
