Silicon Steel Transformer Core Cutting Machine PLC Control

Silicon Steel Transformer Core Cutting Machine PLC Control

Silicon Steel Transformer Core Cutting Machine PLC Control
Silicon Steel Transformer Core Cutting Machine PLC Control

Large Image :  Silicon Steel Transformer Core Cutting Machine PLC Control Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: HJX300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Cutting Machine Cutting Width: 40 ~ 300mm
Cutting Thickness: 0.23 ~ 0.35mm Cutting Length: 350 ~ 9999mm
Feeding Speed: 120m Per Minute Motor Power: 9kw
Color: As Requested Warranty: 12 Months
High Light:

Transformer Core Silicon Steel Cutting Machine

,

PLC Controlled Transformer Core Cutting Machine

,

Transformer Core Cutter 9kw

Silicon Steel Cutting Machine Cut To Length Transformer Core Cutting Machine





Description of transformer core cutting machine HJX300



Automatic transformer core cutting machine HJX300 is a professional equipment for cutting silicon steel to make transformer core and other similar products. The maximum width 300mm silicon steel strip can be cut with this cutting machine. The corresponding parameters can be input through a touch screen. After setting the parameters, the cutting machine can cut automatically. Based on PLC control system, the cutting machine is with high automation.





Main parameters of transformer core cutting machine HJX300



The standard specifications of transformer core cutting machine HJX300 is shown below, however, the core cutting machine can also be manufactured as requested.

Technical Specifications HJX300
Silicon steel thickness 0.23 ~ 0.35mm
Silicon steel width 40 ~ 300mm
Cutting length 350 ~ 9999mm
Feeding speed 0 ~ 120 m/min
Cutting angle tolerance ±0.025°
Cutting length tolerance ±0.10mm
Cutting burring ≤0.02mm
Total power 9kw

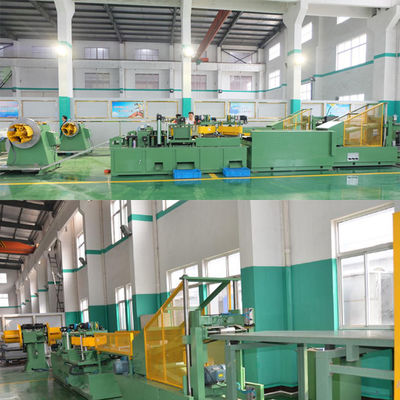

Silicon Steel Transformer Core Cutting Machine PLC Control 0

Fig 1: Transformer core cutting machine HJX300's full view



Silicon Steel Transformer Core Cutting Machine PLC Control 1

Fig 2: Transformer core cutting machine HJX300's side view



Silicon Steel Transformer Core Cutting Machine PLC Control 2Silicon Steel Transformer Core Cutting Machine PLC Control 3Silicon Steel Transformer Core Cutting Machine PLC Control 4Silicon Steel Transformer Core Cutting Machine PLC Control 5Silicon Steel Transformer Core Cutting Machine PLC Control 6Silicon Steel Transformer Core Cutting Machine PLC Control 7Silicon Steel Transformer Core Cutting Machine PLC Control 8Silicon Steel Transformer Core Cutting Machine PLC Control 9Silicon Steel Transformer Core Cutting Machine PLC Control 10
