Description of copper foil winding machine BRJ800-2-2

Reactor copper foil winding machine BRJ800-2-2 is mainly used to wind reactor foil coil and other similar products. This kind of copper foil winding machine is a core-clamping type foil winding machine, which adopts double servo motors to drive two ends to make two chucks on both side have the same torque and ensure the two drive heads to wind synchronously. The copper foil winding machine can handle one or two layers of copper or aluminium foil conductor and one or two layers of insulation paper at the same time. With PLC control system and one touch screen, the copper foil winding machine can be operated easily.

Quick details of copper foil winding machine BRJ800-2-2

• Two chucks
• Foil material ID 500mm
• Foil material OD 1000mm
• Maximum winding speed 24rpm
• Winding power 11kw
• TIG welding

Technical parameters of copper foil winding machine BRJ800-2-2

Typical standard specifications of BRJ800-2-2 are shown below, however these can be easily modified as requested.

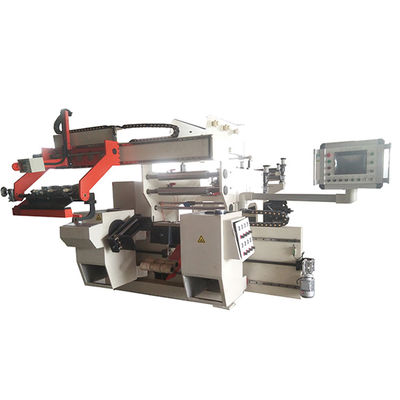

Fig 1:Copper foil winding machine BRJ800-2-2's front view

Fig 2:Copper foil winding machine BRJ800-2-2's back view
