High Torque Reactor Copper Foil Winding Machine Two Servo Motors Driven

High Torque Reactor Copper Foil Winding Machine Two Servo Motors Driven

High Torque Reactor Copper Foil Winding Machine Two Servo Motors Driven
High Torque Reactor Copper Foil Winding Machine Two Servo Motors Driven

Large Image :  High Torque Reactor Copper Foil Winding Machine Two Servo Motors Driven Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ800-2-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Copper Foil Winding Machine Application: Winding Reactor Foil Coil
Foil Type: Copper Or Aluinium Strip Foil Thickness: 0.2 - 3.0mm
Color: As Requested Warranty: 12 Months
Winding Speed: 0 ~ 24 Rpm Winding Power: 11kw
High Light:

High Torque Copper Foil Winding Machine

,

Servo Motor Copper Foil Winding Machine

,

Servo Motors Driven Winding Machine

High Torque Two Servo Motors Driven Reactor Copper Foil Winding Machine





Description of copper foil winding machine BRJ800-2-2



Reactor copper foil winding machine BRJ800-2-2 is mainly used to wind reactor foil coil and other similar products. This kind of copper foil winding machine is a core-clamping type foil winding machine, which adopts double servo motors to drive two ends to make two chucks on both side have the same torque and ensure the two drive heads to wind synchronously. The copper foil winding machine can handle one or two layers of copper or aluminium foil conductor and one or two layers of insulation paper at the same time. With PLC control system and one touch screen, the copper foil winding machine can be operated easily.





Quick details of copper foil winding machine BRJ800-2-2



  • Two chucks
  • Foil material ID 500mm
  • Foil material OD 1000mm
  • Maximum winding speed 24rpm
  • Winding power 11kw
  • TIG welding



Technical parameters of copper foil winding machine BRJ800-2-2



Typical standard specifications of BRJ800-2-2 are shown below, however these can be easily modified as requested.

Foil width: 250-800mm
Max. Wound Coil OD.: 850mm
Wound Coil Shape: Round, Rectangular, Oval, etc.
Conductor Foil Material: Copper or Aluminum
Al Foil Thickness: 0.3 - 3.0 mm
Cu Foil Thickness: 0.2 - 2.0 mm
Foil Decoiler Number: 2 pcs
Foil Decoiler Length: 850mm
Foil Decoiler Diameter: Adjustable range 400-520mm
Max. Coil Weight: 1,000KG
Motor Power: 5.5KW*2
Max. Winding Speed: 24 rpm
Welding System: TIG
Welding Speed: 0-0.8m/min
Insulation Decoiler Number: 2 pcs
Insulation Decoiler Width: 850mm
Insulation Decoiler Shaft: Expandable
Edge Alignment System: Photoelectric sensing
Correction Precision: ±0.5mm
Control System: PLC
User interface: 10 inches (254mm) touch screen
Counting Turn Range: 0 - 9999.9

High Torque Reactor Copper Foil Winding Machine Two Servo Motors Driven 0

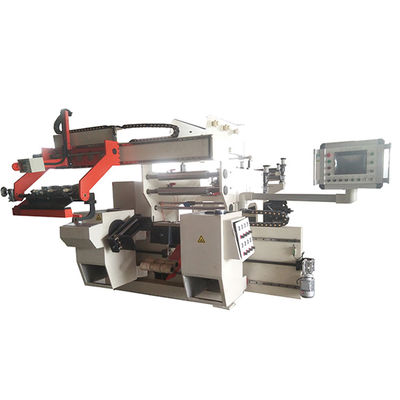

Fig 1:Copper foil winding machine BRJ800-2-2's front view
