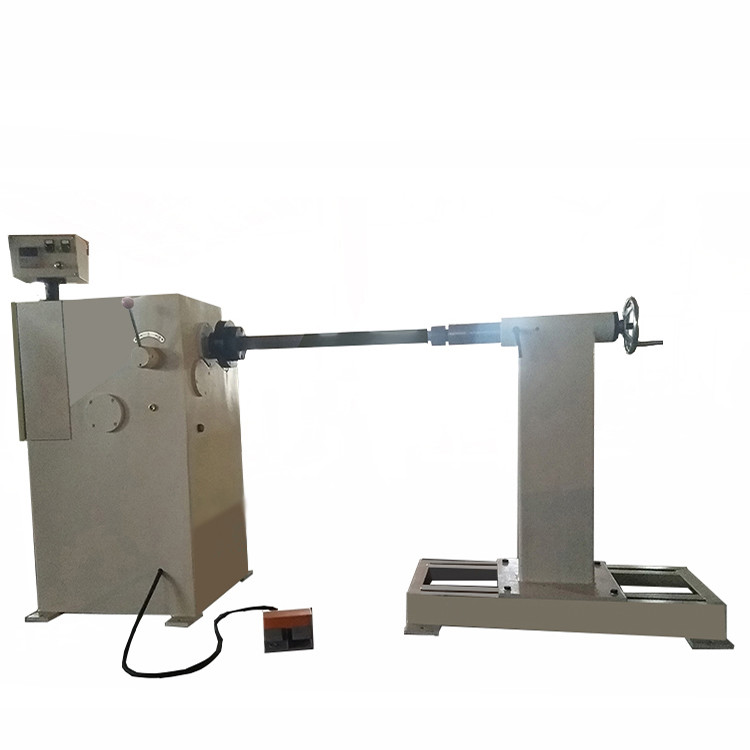

HV LV Power Transformer Winding Machine Semi Automatic Wire Winder

Semi Automatic HV And LV Transformer Coil Winding Machine With Counter

Quick Detail:

• Winding copper or aluminium wire
• Winding width 1000mm
• Maximum capacity 1000kg
• Winding power 3kw
• Winding shaft size 40x40x1200mm
• Two speed gear

Description

Semi Automatic HV And LV Transformer Coil Winding Machine With Counter GDY-1T is suitable for winding different specifications of copper or aluminum wire coils. These coils can be used in transformers and other similar products. The machine is provided with an digital counter and the turning number can be preset. The counting record and the parameters input can be saved in case of power off. The machine has two speed gears, the winding speed is 0-50rpm in low gear, and the winding speed is 50-200 rpm in high gear. Moreover, the winding speed can be adjusted stepless in each gear by a potentiometer on the board. The rotating direction (forward/reverse) can be switched through the foot pedal.

Specifications:

Typical standard specifications of GDY-1T are shown below, however these can be easily modified as requested.
