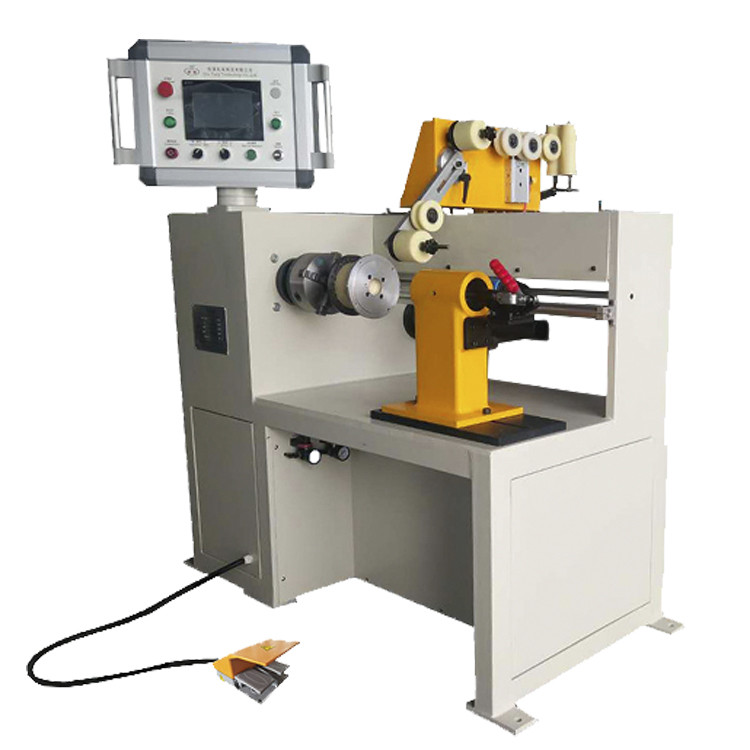

Maximum Transverse Length 250mm Automatic Coil Winding Machine 200rpm

Factory Direct Sales Maximum Transverse Length 250mm Automatic Coil Winding Machine

Description of automatic coil winding machine ZPX250

Factory direct sales maximum transverse length 250mm automatic coil winding machine ZPX250 can be used to wind round or flat copper or aluminium wire. The automatic coil winding machine is a special winding equipment for winding small medium transformer coils and other similar products. Main winding motor with 3 KW is used to provide big pulling force for the automatic coil winding machine. The wire guide driven by a 750w servo motor is for laying wire when running the automatic coil winding machine, which guarantees the precision of laying wire.

Main Components of automatic coil winding machine ZPX250

1. Main frame

2. Winding unit

3. Wire guide

4. Electronic cabinet

6. Pneumatic system

7. Foot pedal

8. PLC control system

Technical Parameters of automatic coil winding machine

Typical standard specifications of automatic coil winding machine ZPX250 are shown below, however these can be easily modified as requested.
