Oil Immersed Transformer Wire Automatic Coil Winding Machine Programmable

Programmable Oil Immersed Transformer Wire Winder Automatic Coil Winding Machine

Description of automatic coil winding machine ZPX800

Automatic coil winding machine ZPX800 is a professional wire winder, which is mainly used to wind copper or aluminium wire to make transformer coils and other similar products. The automatic coil winding machine is provided with a movable tail stock, which makes it easy to take away the wound coil from the winding shaft. With PLC control system, the automatic coil winding machine can achieve many automatic functions. One servo motor is adopted to drive the wire guide, which guarantees the wire guide move precisely. The automatic coil winding machine features high automatic, easy operation and so on.

Features of automatic coil winding machine ZPX800

• slow starting
• smooth running
• full function
• high automation
• PLC control system
• 50+ winding programs stored

Main parameters of automatic coil winding machine ZPX800

The standard specifications of automatic coil winding machine ZPX800 is as following,however, the automatic coil winding machine can also be manufactured as requested.

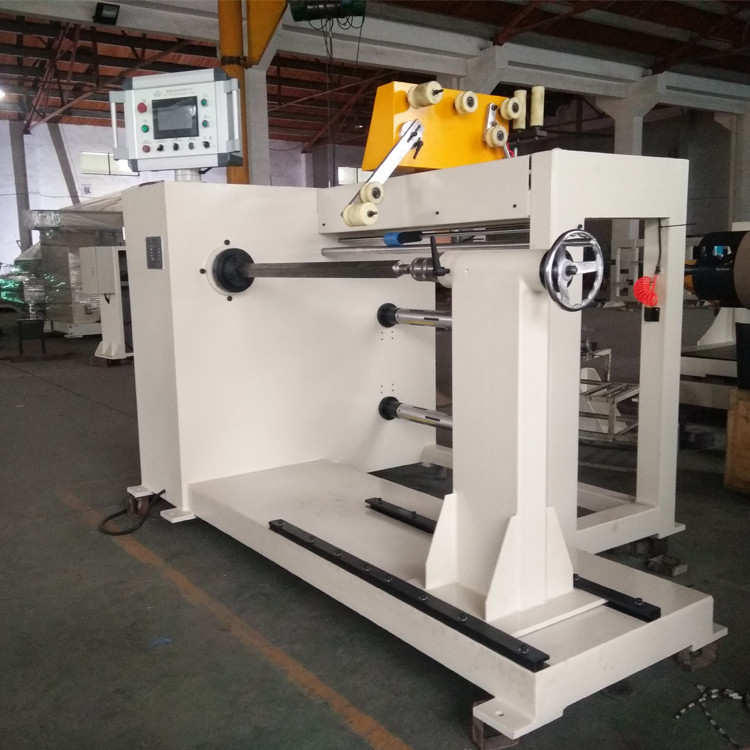

Fig 1: Automatic coil winding machine ZPX800's front view

Fig 2: Automatic coil winding machine ZPX800's wire guide
