PLC Cast Resin Transformer Making Equipment Automatic

Cast Resin Transformer Making Equipment Automatic Transformer Foil Winding Machine


Description of copper foil winding machine BRJ800-2

Copper foil winding machine BRJ800-2 is one of cast resin transformer making equipment, which is mainly used to wind copper or aluminium foil to make foil coils and other similar products. With two foil deciolers, the copper foil winding machine can wind one or two layers of copper foil or aluminium foil. TIG welding unit is adopted on the copper foil winding machine for welding foil and bus bar together. With a touch screen, it is very easy to input all parameters intuitively. The control system of the copper foil winding machine is based on PLC, which make the machine have many automation function.


Quick details of copper foil winding machine BRJ800-2

• Maximum foil width 800mm
• Winding copper or aluminium foil
• Foil conductor ID 500mm, OD 1000mm
• TIG welding
• Pressing roller
• Machine’s color can be customized


Technical parameters of copper foil winding machine BRJ800-2

Typical standard specifications of copper foil winding machine BRJ800-2 are shown below, however these can be easily modified as requested.

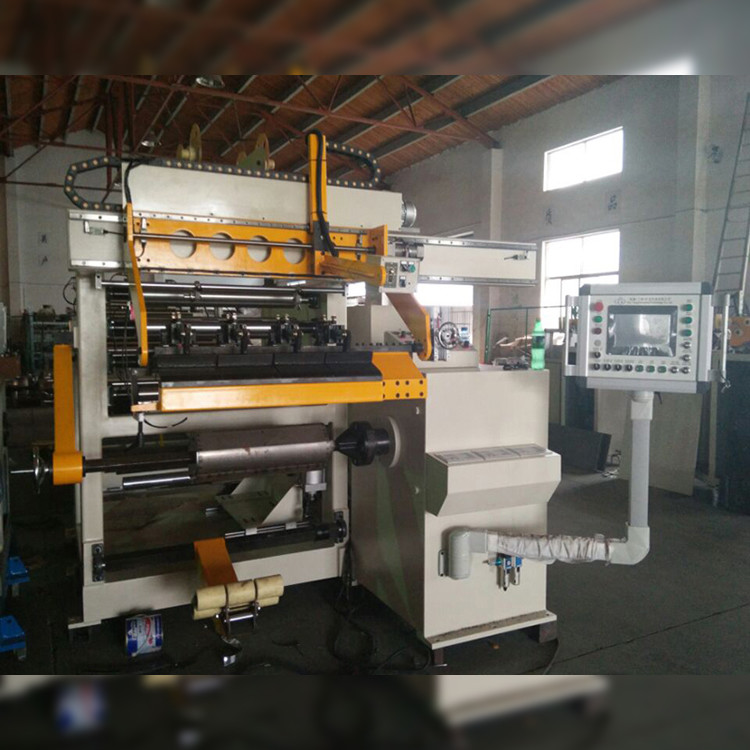

Fig 1: Copper foil winding machine BRJ800-2's front view


Fig 2: Copper foil winding machine BRJ800-2's foil decoiler
