PLC Control Transformer Coil Winding Machine Copper And Aluminium Wire

PLC Control Transformer Coil Winding Machine Copper And Aluminium Wire Winder

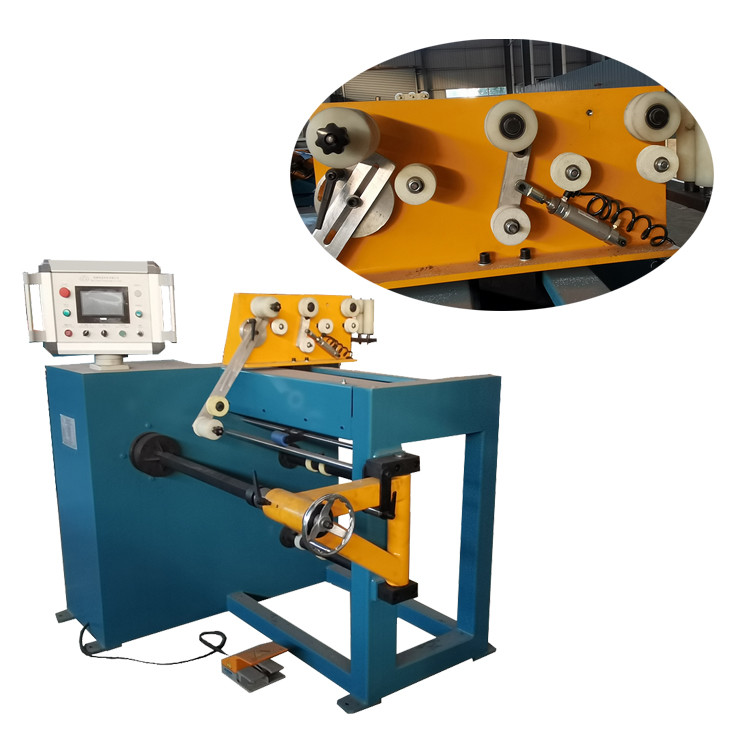

Description of transformer coil winding machine ZPX400

Transformer coil winding machine ZPX400 is a professional equipment for winding copper or aluminium wire, which can wind transformer coil or other similar products. This kind of transformer coil winding machine can be used to wind not only copper flat and round wire, but also aluminium flat and round wires. The transformer coil winding machine is provided with a wire guide for laying wire when winding, and the maximum transverse length of the wire guide is 400mm, which means the transformer coil winding machine can be used to wind the coil with maximum height 400mm. One 750w servo motor is adopted to drive the wire guide, which guarantees the moving precision of the wire guide. With one touch screen and HMI, it is very easy to operate the transformer coil winding machine.

Quick details of transformer coil winding machine ZPX400

• 2.2kw motor
• Maximum winding speed 200rpm
• PLC control system
• Winding flat or round wire
• pneumatic system
• Foot pedal

Technical Parameters of transformer coil winding machine ZPX400

Typical standard specifications of transformer coil winding machine ZPX400 are shown below, however these can be easily modified as requested.
