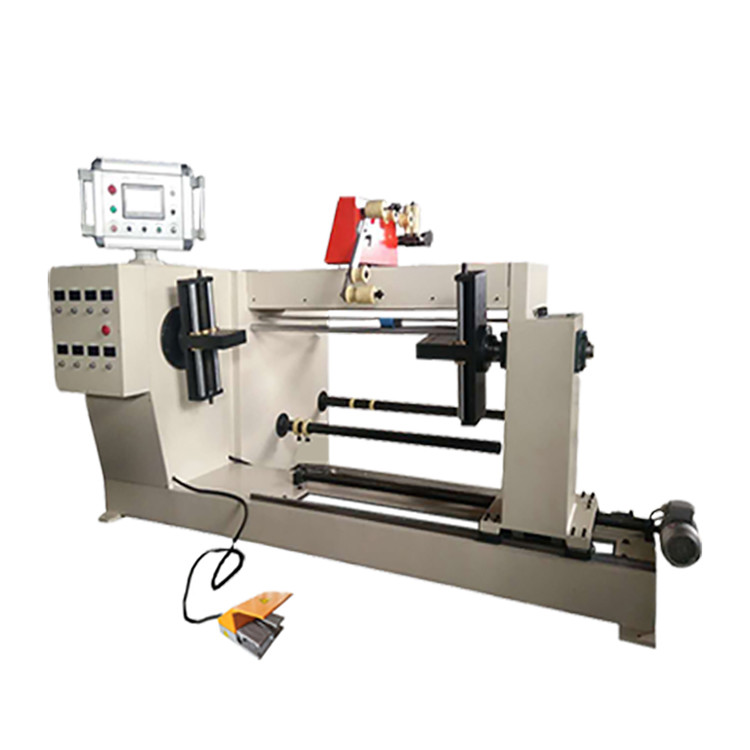

Programmable 1000mm Winding Width Reactor Coil Winding Machine 160rpm

Programmable Automatic 1000mm Winding Width Reactor Coil Winding Machine

Quick Detail:

• Winding copper or aluminium wire
• Round wire size Φ0.3 ~ Φ5.0mm
• Flat wire size max 5x12mm
• Winding speed 160rpm
• Winding power4.4kw
• One year warranty

Description

Programmable Automatic 1000mm Winding Width Reactor Coil Winding Machine ZPX1000 is a kind of core clamping type winding machine. The iron core is clamped by the chucks, and the motors drive the chucks to rotate, and the wire is wound on the core directly. The two chucks are driven by two motors, which guarantees the two drive stocks have the same torque. The wire guide is driven by a servo motor, which guarantees the excellent stop start behaviour. PLC makes the machine have different function. Coloured touch screen makes the machine easy operation.

Main Features

• electronic programmable
• simple operation
• slow starting
• smooth running
• strong pulling force
• high reliability
• high accuracy

Main Parameters
