Servo Driven Automatic Wire Winder Programmable 0 - 200rpm

Automatic Wire Winding Winder Programmable Transformer Coil Winding Machine

Introduction of transformer coil winding machine ZPX600

Transformer coil winding machine ZPX600 is one kind of wire winding equipment, which can be used to wind to make transformer coil or other similar products. Both copper wire and aluminium wire can be wound with this kind of transformer coil winding machine. The transformer coil winding machine is provided with 4kw motor to drive the winding shaft. Servo motor is adopted to drive the wire guide, which guarantees the precision of the wire guide moving. The control system of the transformer coil winding machine is based on PLC. The transformer coil winding machine features slow starting, big torque, smooth running, precise moving and so on.

Main features of transformer coil winding machine ZPX600

• programmable
• easy operation
• slow starting
• smooth running
• strong pulling force
• high reliability
• high accuracy
• full functions

Main parameters of transformer coil winding machine ZPX600

The standard specification of transformer coil winding machine ZPX600 are as following, however, the coil winding machine can also be manufactured as requested.

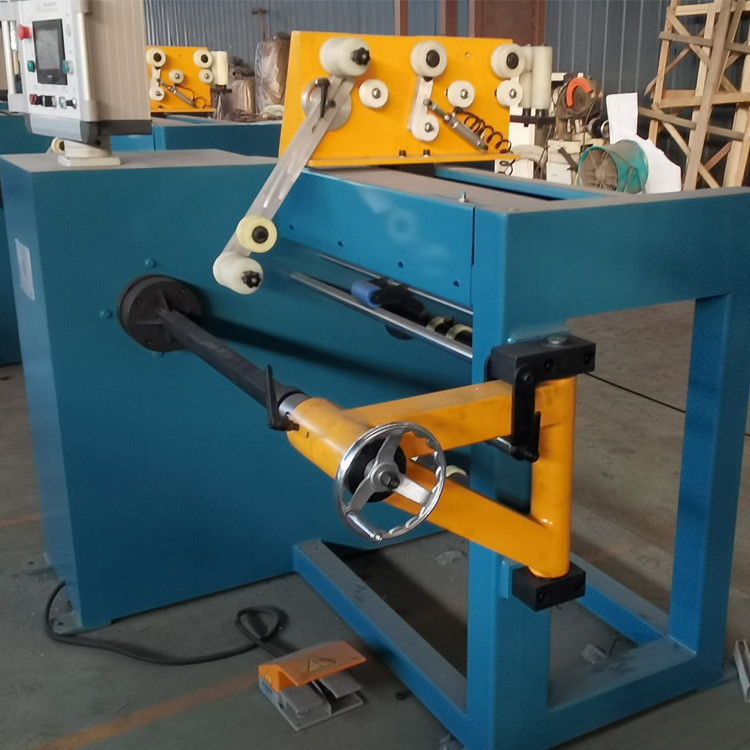

Fig 1: Transformer coil winding machine ZPX600's full view

Fig 2: Transformer coil winding machine ZPX600's winding shaft
