Name: Silicon Steel Transformer Core Cutting Machine PLC Control
Brand: Suzhou Tronsing Technology Co., Ltd
SKU: HJX300
Price: 26,000.00 USD
Availability: InStock

Silicon Steel Transformer Core Cutting Machine PLC Control

MOQ

negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Transformer Core Cutting Machine

Cutting Width: 40 ~ 300mm

Cutting Thickness: 0.23 ~ 0.35mm

Cutting Length: 350 ~ 9999mm

Feeding Speed: 120m Per Minute

Motor Power: 9kw

Color: As Requested

Warranty: 12 Months

Highlight:

Transformer Core Silicon Steel Cutting Machine

PLC Controlled Transformer Core Cutting Machine

Transformer Core Cutter 9kw

Basic Infomation

Place of Origin: China

Brand Name: STT

Certification: CE, etc

Model Number: HJX300

Payment & Shipping Terms

Packaging Details: seaworthy packing

Delivery Time: 90 days

Payment Terms: T/T, L/C

Supply Ability: 100 sets per year

Gallery

Silicon Steel Transformer Core Cutting Machine PLC Control

Product Description

Silicon Steel Cutting Machine Cut To Length Transformer Core Cutting Machine

Description of transformer core cutting machine HJX300

Automatic transformer core cutting machine HJX300 is a professional equipment for cutting silicon steel to make transformer core and other similar products. The maximum width 300mm silicon steel strip can be cut with this cutting machine. The corresponding parameters can be input through a touch screen. After setting the parameters, the cutting machine can cut automatically. Based on PLC control system, the cutting machine is with high automation.

Main parameters of transformer core cutting machine HJX300

The standard specifications of transformer core cutting machine HJX300 is shown below, however, the core cutting machine can also be manufactured as requested.

Technical Specifications	HJX300
Silicon steel thickness	0.23 ~ 0.35mm
Silicon steel thickness	0.23 ~ 0.35mm
Silicon steel width	40 ~ 300mm
Cutting length	350 ~ 9999mm
Feeding speed	0 ~ 120 m/min
Cutting angle tolerance	±0.025°
Cutting length tolerance	±0.10mm
Cutting burring	≤0.02mm
Total power	9kw

Silicon Steel Transformer Core Cutting Machine PLC Control 0

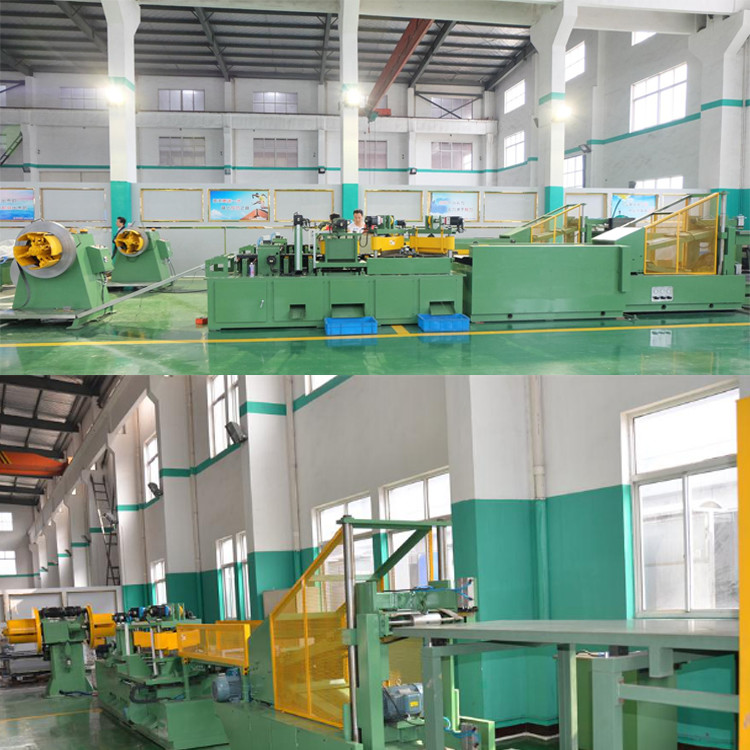

Fig 1: Transformer core cutting machine HJX300's full view

Silicon Steel Transformer Core Cutting Machine PLC Control 1

Fig 2: Transformer core cutting machine HJX300's side view

Silicon Steel Transformer Core Cutting Machine PLC Control 2
