Simple Practical Oil Immersed Power Transformer Coil Winding Machine 200rpm

Simple Practical Oil Immersed Power Transformer Coil Winding Machine

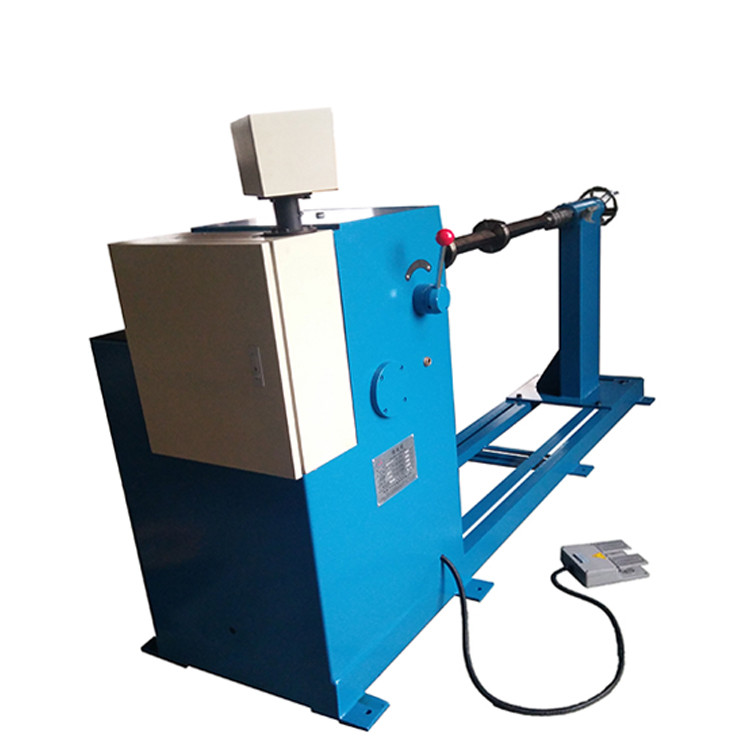

Description of transformer coil winding machine GDY-1T

Simple practical transformer coil winding machine GDY-1T is mainly used to winding different sized wire coils. The transformer coil winding machine can be used to wind different size of copper or aluminium wire. The transformer coil winding machine is provided with a counter to record the number of turns when winding. The total number of turns can be preset, which means the machine will stop winding when the transformer coil winding machine finishes winding the number of turns. The foot pedal is for starting running the machine and switching the winding direction, forward and reverse. It is very easy to operate the transformer coil winding machine.

Main components of transformer coil winding machine

1. Steel welded frame,

2. Gearbox

3. Tailstock with liver center or socket,

4. Electric control cabinet

5. Foot pedal

6. Motor

Main parameters of transformer coil winding machine

Typical standard specifications of transformer coil winding machine GDY-1T are shown below, however these can be easily modified as requested.
