Description of automatic coil winding machine ZPX500-3

Automatic coil winding machine ZPX500-3 is one kind of high effective wire winder equipment. With three wire guides, this kind of automatic coil winding machine can wind three coils at the same time. Moreover, the automatic coil winding machine can also be used to wind one coil or two coils at the same time. With HMI and PLC control system, the automatic coil winding machine is with high automation. The coil winding machine features slow start, smooth running, easy operation and so on.

Main features of automatic coil winding machine ZPX500-3

• Slow starting
• Smooth running
• Full function
• Servo motor driven wire guide
• Simple operation, accuracy and reliability
• High automation

Technical parameters of automatic coil winding machine ZPX500-3

Typical standard specifications of automatic coil winding machine ZPX500-3 are shown below and the coil winding machine can also be manufactured as requested.

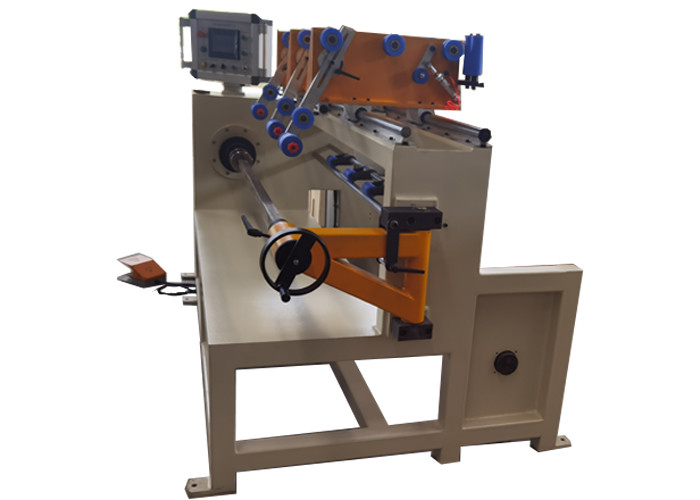

Fig 1: Automatic coil winding machine ZPX500-3's full view

Fig 2: Automatic coil winding machine ZPX500-3's coil stand
