Two Cutting Two Punching Power Transformer Automatic Core Cutter 11kw

Automatic Two Cutting Two Punching Power Transformer Core Cutting Machine

Description of transformer core cutting machine HJX300-LL

Two cutting two punching power transformer Core Cutting Machine HJX300-LL is a professional equipment for cutting silicon steel to make transformer iron core. The transformer core cutting machine’s transverse shear line adopts single side location and manual width adjustment. Based on PLC, the control system control the machine automatically. The punching and cutting actions of the transformer core cutting machine are driven by a servo motor with high efficiency, high precision, low noise and low failure rate. The transformer core cutting machine features full function, high automation and easy operation.

Quick details of transformer core cutting machine

• Cutting thickness 0.2 ~ 0.35mm
• Cutting width 40 ~ 300mm
• Feeding speed 120m/min
• Motor power 11kw
• Color as requested
• 12 months warranty

Main parameters of transformer core cutting machine

The standard specifications of HJX300-LL is shown below, however, the specifications can be amended as requested.

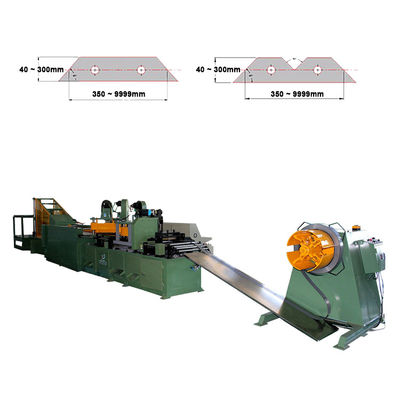

Fig 1: Transformer core cutting machine HJX300-LL's full view

Fig 2: Transformer core cutting machine HJX300-LL's side view
