Description of transformer foil winding machine BRJ800-2

Transformer foil winding machine BRJ800-2 is for winding copper or aluminium strip to make cast resin transformer coil. This kind of transformer foil winding machine is provided with 15kw motor, which provide big torque to wind the foil with maximum width 800mm. The transformer foil winding machine adopts TIG welding process to weld foil and bus bar together. The transformer foil winding machine can be used to wind one or two layers of copper or aluminium foil strip and one or two layers of insulation paper. The transformer foil winding machine features slow starting, smooth running, high automation, full function, strong pulling force and so on.

Quick details of transformer foil winding machine BRJ800-2

1) Two foil decoilers

2) Two insulation paper decoilers

4) End-fill strip feeder

5) Cleaning system

6) Deburring system

7) Edge alignment system

8) Automatic welding unit

Technical parameters of transformer foil winding machine

Typical standard specifications of transformer foil winding machine BRJ800-2 are shown below, however, the winding machine can also be manufactured as requested.

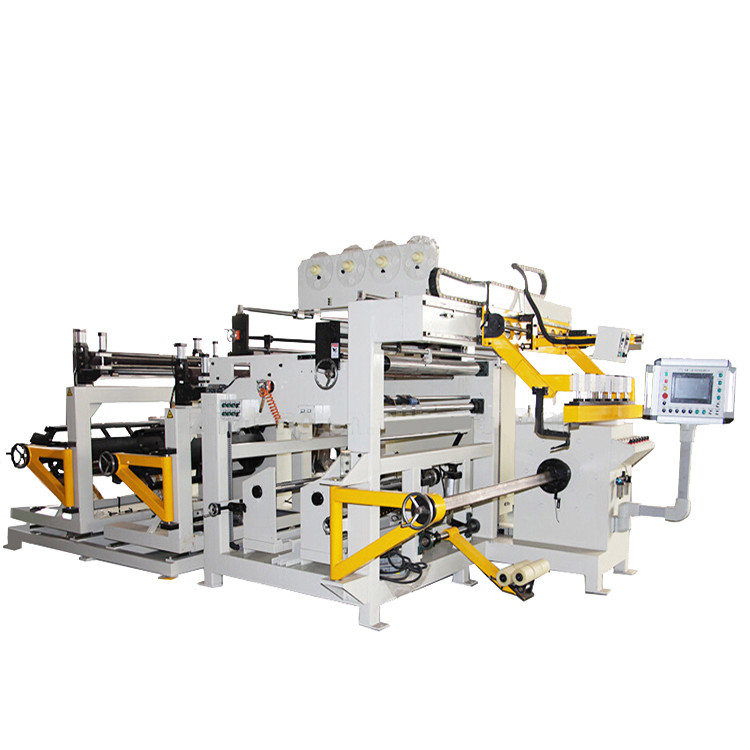

Fig 1: Transformer foil winding machine BRJ800-2's front view

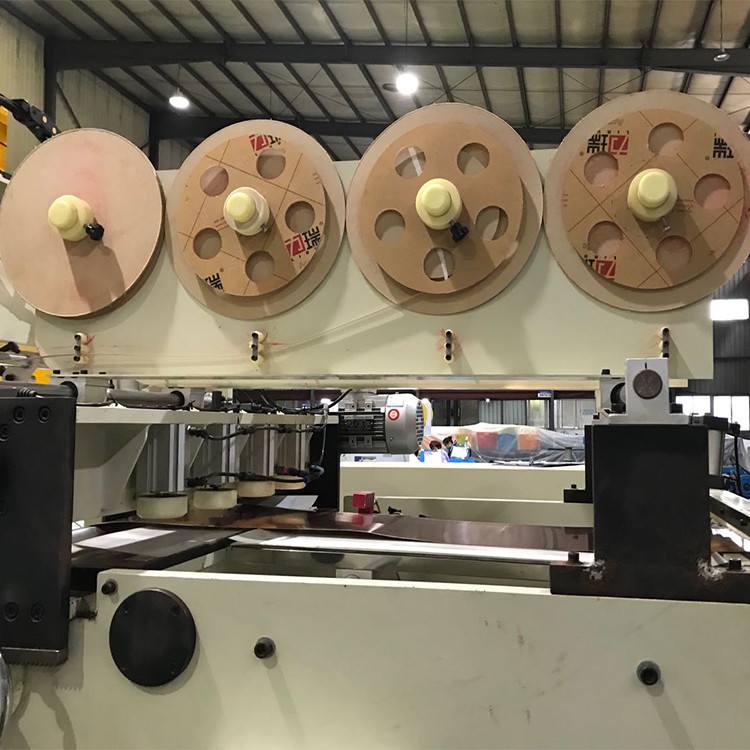

Fig 2: Transformer foil winding machine BRJ800-2's foil decoiler

Packing and Shipping

Seaworthy packing and one 40 feet container for shipping.
