Product Details:
Payment & Shipping Terms:
|
| Name: | Transformer Foil Winding Machine | Foil Width: | 600mm |
|---|---|---|---|
| Foil Decoiler: | 2 Pcs | Winding Speed: | 0 ~ 26 Rpm |
| Color: | As Requested | Warranty: | 12 Months |
| Insulation Decoiler: | 2 Pcs | Roll Shear: | 1 Pc |
| Highlight: | Cast Resin transformer winder machine,600mm cold pressure welding machine,26 rpm transformer winder machine TIG |
||
Programmable Automatic Cast Resin Transformer Foil Winding Machine With TIG
Quick details of transformer foil winding machine BRJ600-2
Description of transformer foil winding machine BRJ600-2
Programmable Automatic Cast Resin Transformer Foil Winding Machine BRJ600-2 is mainly used to wind transformer foil coil and other similar products. The transformer foil winding machine can be used to wind copper or aluminium strip. The transformer foil winding machine is provided with pneumatic brake system for foil decoilers and insulation decoiler to provide tension to make sure the coil can be wound tightly when winding. With photoelectric sensors, the transformer foil winding machine can correct the position of foil, which can make the foil edge neat when winding. HMI makes sure the operating easy and intuitive.
Main parameters of transformer foil winding machine BRJ600-2
| Coil Shape: | oval, circle and rectangular |
| Conductor Foil Material OD.: | 1,000mm |
| Conductor Foil Material ID.: | 500mm |
| Number of Conductor Decoiler: | 2 pcs |
| Length of Conductor Decoiler: | 650mm |
| Conductor Decoiler Expanding Range: | adjustable Dia. range 400-520mm |
| Winding Power: | 11KW |
| Winding Shaft Size: | 80×80×950 mm |
| Max. Winding Speed: | 26 Rpm |
| Insulation Decoiler: | 2 pcs |
| Insulation Material OD.: | ≤400mm |
| Insulation Material ID.: | 76mm |
| Insulation Paper Width: | 650mm |
| End-fill Strip Feeder: | 6 pcs |
| Edge Alignment System: | Photoelectric sensing automatic rectifying deviation |
| Rectification Precision: | ±0.5mm |
| User Interface: | 10inch (254mm) touch screen industrial PC / access controller |
| Counting Turns Range: | 0 - 9999.9 |

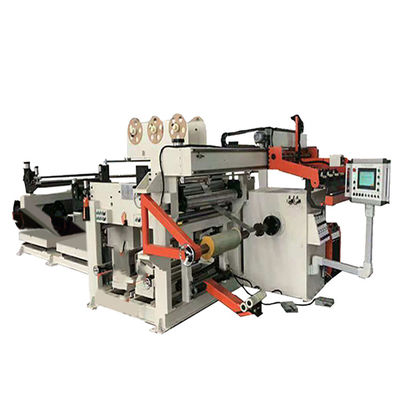

Fig 1: Transformer foil winding machine BRJ600-2's front view
Fig 2 :Transformer foil winding machine BRJ600-2
