7.5kw Motor Power Automatic Coil Winding Machine For Winding Wire Coils

Máquina de bobinado Automatic Coil Winding Machine Wire Winder

Description of automatic coil winding machine ZPX1400

Automatic coil winding machine ZPX1400 is a special wire winder. This kind of coil winding machine can be used to wind both copper wire and aluminium wire to make wire coils. The wound coils can be used in transformers and other similar products. With a potentiometer, the automatic coil winding machine’s winding speed can be adjusted manually. The control system of the automatic coil winding machine is based on PLC. With HMI, it is very easy to operate the automatic coil winding machine. The foot pedal of the automatic coil winding machine can stop or start the machine.

Main features of automatic coil winding machine ZPX1400

• slow starting
• smooth running
• full function
• high automation
• High torque
• High precision

Technical parameters of automatic coil winding machine ZPX1400

Typical standard specifications of automatic coil winding machine ZPX1400 are shown below and the machine can also be manufactured as requested.

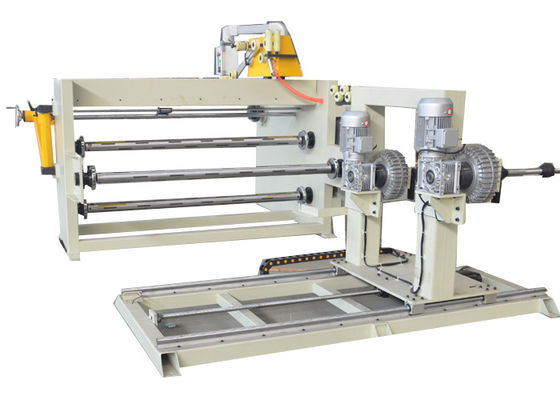

Fig 1: Automatic coil winding machine ZPX1400's front view

Fig 2: Automatic coil winding machine ZPX1400's insulation decoiler
