| Product Name: | Automatic Coil Winding Machine | Winding Width: | 0 ~ 1000mm |
|---|---|---|---|
| Winding Power: | 5.5kw | Winding Speed: | 0 ~ 160rpm |
| Max. Load Capacity: | 1000kg | Wire Guide: | 1 Pc |
| Color: | As Requested | Warranty: | 12 Months |
| Highlight: | Copper Wire Automatic Coil Winder,160rpm Automatic Coil Winder,5.5kw Automatic Coil Winding Machine |
||
Copper Wire Winder devanadera Automatic Coil Winding Machine Making Transformer Coil
Description of automatic coil winding machine ZPX1000
Automatic coil winding machine ZPX1000 is one model of heavy duty wire coil winding machine. The automatic coil winding machine, Máquina de bobinado, can wind the coil with maximum height 1000mm and maximum weight 1000kg. With PLC control system, the automatic coil winding machine, Máquina de bobinado, is not only with rich functions, but also with other functions with different program. The automatic coil winding machine is provided with winding motor, servo motor, wire guide, touch screen and so on. The wire guide is driven by a servo motor with 750w power, based on good control of the servo motor, the wire guide can move according to the parameters preset.
Features of automatic coil winding machine ZPX1000
Main parameters of automatic coil winding machine ZPX1000
The following is the standard specifications of the automatic coil winding machine ZPX1000, however, these can be modified as requested.
| Winding Shaft Center Height: | 900mm |
| Winding Shaft Size: | 40x40x1300mm |
| Maximum Winding Width: | 1000mm |
| Winding Power: | 5.5kw |
| Rotating Speed: | 0 ~ 160 rpm |
| Speed Regulation: | stepless |
| Max. Flat Wire Size: | 5mm x 12mm |
| Round Wire Diameter: | Φ0.3mm ~ Φ5.0mm |
| Maximum wound Coil OD.: | Φ800mm |
| Maximum Capacity: | 800kg |
| Minimum Spread Pitch: | 0.01mm |
| Counting Mode: | 5-digit counting |
| Counting Turn Range: | 0 ~ 9999.9 |

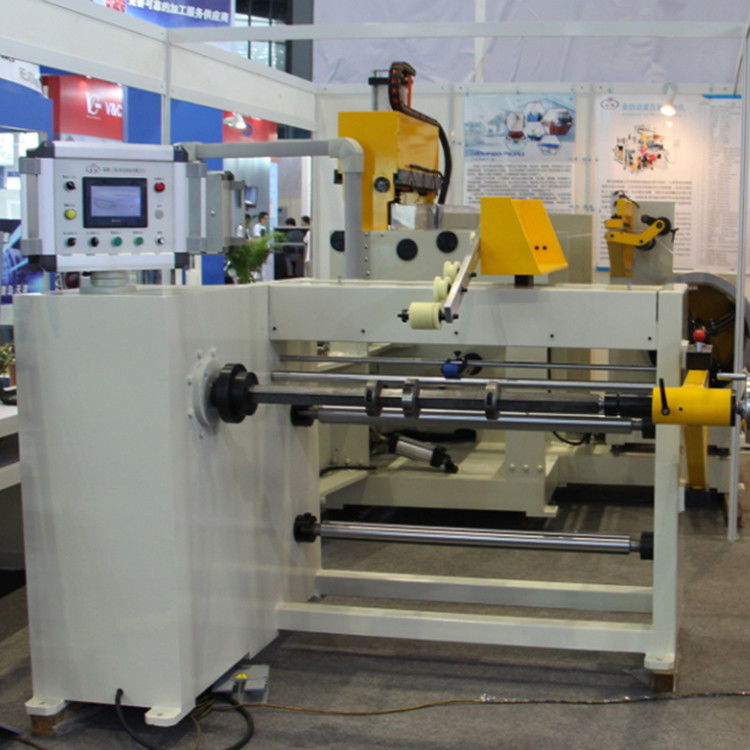

Fig 1: Automatic coil winding machine ZPX1000's front view
U
Fig 2: Automatic coil winding machine ZPX1000's wire guide
