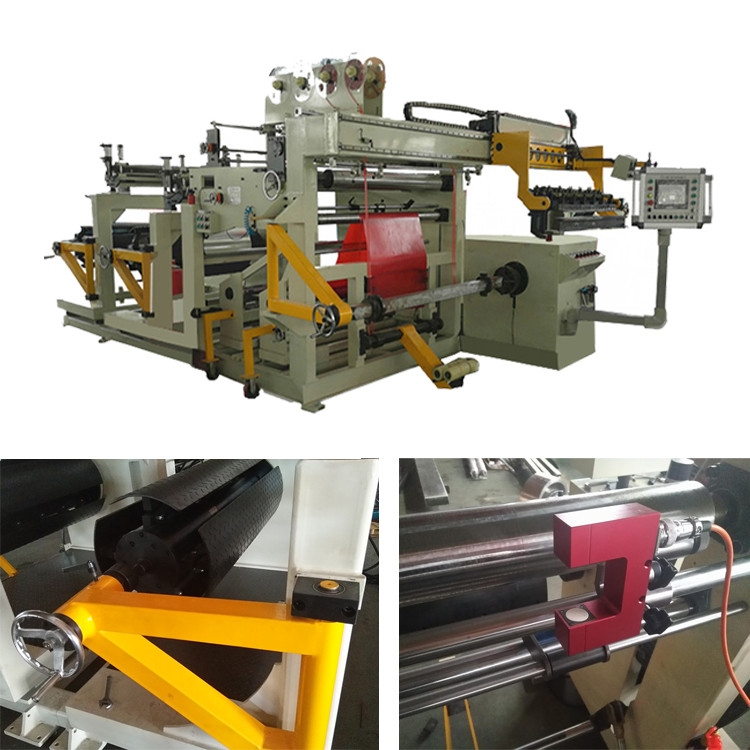

Aluminum And Copper Foil Winder Dry Transformer Foil Winding Machine Two Layers

Two Layers Aluminum And Copper Foil Winder Dry Transformer Foil Winding Machine

Description of transformer foil winding machine BRJ1200-2

Transformer foil winding machine is an advanced piece of equipment designed for the precise and efficient winding of transformer coils using foil conductors. Transformer foil winding machine revolutionizes the traditional method of winding transformers by incorporating cutting-edge technology and automation. This kind of transformer foil winding machine can wind both one or two layers of aluminium foil or copper foil and one or two layers of insulation paper. With PLC control system and HMI, the transformer foil winding machine can be operated easily.

Main components of transformer foil winding machine BRJ1200-2

• Main frame
• Winding unit
• Foil decoiler
• Insulation decoiler
• End-fill strip feeder
• Cleaning system
• Cutting system
• Foil deburring system
• Edge alignment system
• Automatic welding unit
• Electronic control system
• Pneumatic system

Technical parameters of transformer foil winding machine BRJ1200-2

Typical standard specifications of transformer foil winding machine BRJ1200-2 are shown below, however, the transformer foil winding machine can also be manufactured as requested.

FIG 1: Transfomer foil winding machine's side view

Fig 2: Transformer foil winding machine BRJ1200-2's back view
