Aluminum Transformer Foil Winding Machine Cold Pressure Welding

Cold Pressure Welding Máquina de bobinado de láminas de aluminio Transformer Foil Winding Machine

Description of transformer foil winding machine BRJ300-2

Transformer foil winding machine BRJ300-2 is a dedicated equipment for winding transformer foil coils and other similar products. The transformer foil winding machine is provided with PLC control system, which can make the machine run automatically as per the parameters input. With cold welding unit, the transformer foil winding machine can weld not only copper foil and copper bar, but also copper bar and aluminium foil together. The Máquina de bobinado de láminas de aluminio features slow staring, smooth running, high automation, full function, etc. It is very easy to operate the machine.

Main components of transformer foil winding machine BRJ300-2

1. Main frame

2. Foil decoiler

3. Pressing roller

4. Winding unit

5. Insulation decoiler

6. Edge alignment system

7. Automatic cold welding unit

8. Pneumatic unit

9. Electrical control system

Technical parameters of transformer foil winding machine BRJ300-2

Typical standard specifications of transformer foil winding machine BRJ300-2 are shown below, however these can be modified as requested.

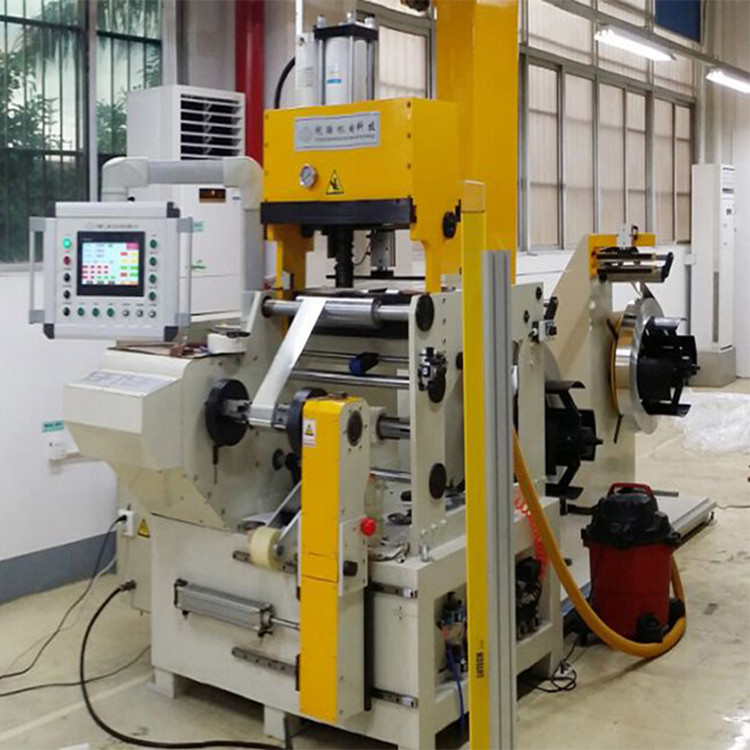

Fig 1: Transformer foil winding machine BRJ300-2's full view

Fig 2: Transformer foil winding machine BRJ300-2's welding unit
