| Name: | Foil Winding Machine | Max. Foil Width: | 300mm |
|---|---|---|---|
| Welding Mold: | Cold Press Welding | Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Al Foil Thickness: | 0.3 ~ 3.0mm | Rotating Speed: | 0 ~ 35 Rpm |
| Winding Power: | 5.5kw | Color: | Optional |
| Warranty: | 12 Months | ||
| High Light: | Cold Pressure Transformer Foil Winding Machine,Transformer Foil Cold Pressure Welding Machine,Pneumatic Transformer Foil Winding Machine |
||
Cold Pressure Welding Máquina de bobinado de láminas de aluminio Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ300-2
Transformer foil winding machine BRJ300-2 is a dedicated equipment for winding transformer foil coils and other similar products. The transformer foil winding machine is provided with PLC control system, which can make the machine run automatically as per the parameters input. With cold welding unit, the transformer foil winding machine can weld not only copper foil and copper bar, but also copper bar and aluminium foil together. The Máquina de bobinado de láminas de aluminio features slow staring, smooth running, high automation, full function, etc. It is very easy to operate the machine.
Main components of transformer foil winding machine BRJ300-2
1. Main frame
2. Foil decoiler
3. Pressing roller
4. Winding unit
5. Insulation decoiler
6. Edge alignment system
7. Automatic cold welding unit
8. Pneumatic unit
9. Electrical control system
Technical parameters of transformer foil winding machine BRJ300-2
Typical standard specifications of transformer foil winding machine BRJ300-2 are shown below, however these can be modified as requested.
| Max. Foil Width: | 300mm |
| Finished Coil OD.: | 600mm |
| Coil Shape: | Circle, Oval and Rectangle etc. |
| Supply coil Material: | Copper or aluminum |
| Supply Coil Width: | 300mm |
| Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Al Foil Thickness: | 0.3 ~ 3.0mm |
| Supply Coil ID.: | Φ500mm |
| Supply Coil OD.: | Φ1000mm |
| Foil Dereeler Quantity: | 2 pcs |
| Foil Dereeler Expanding Range: | Φ420mm ~ Φ520mm |
| Max Coil Weight: | 1000kg |
| Rectifying Mode: | Photoelectric sensing |
| Insulation Paper Dereeler Quantity: | 1set |
| Insulation Paper Supply Coil OD.: | ≤ Φ400mm |
| Insulation Paper Supply Coil ID.: | Φ76mm |
| Winding Speed: | 0 ~ 35 RPM |
| Winding Power of Servo Motor: | 5.5kw |
| Cold Welding Device: | 1 set |
| Control System: | PLC |
| Counting Turn Range: | 0 - 9999.9 |

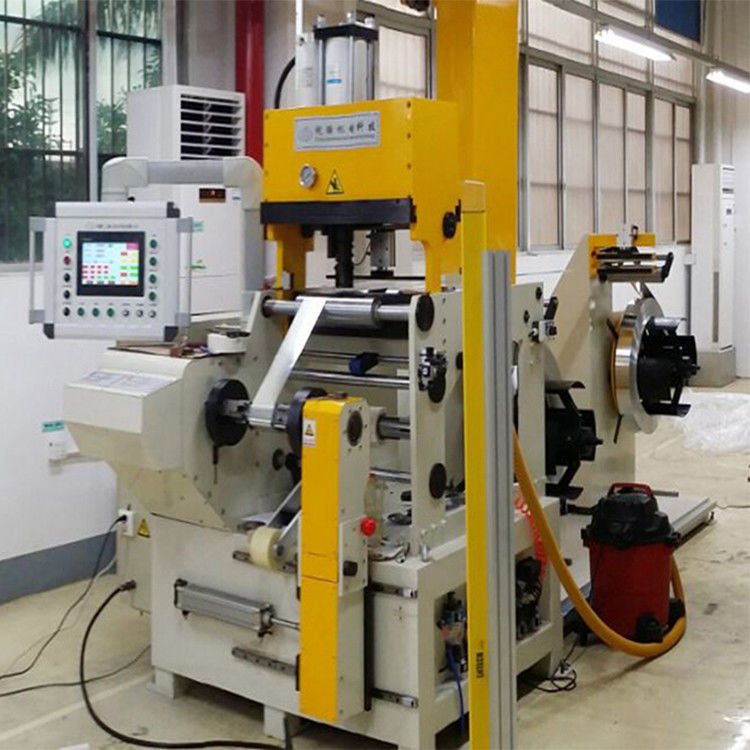

Fig 1: Transformer foil winding machine BRJ300-2's full view
Fig 2: Transformer foil winding machine BRJ300-2's welding unit
