Automatic Transformer Coil Winding Machine Winding Transformer Coil

Automatic Transformer Coil Winding Machine With PLC Control System

Quick Detail:

1) Winding width 250mm

2) Center height 900mm

3) Winding power 2.2kw

4) Winding speed 200rpm

5) Customized color

6) Warranty period 12 months

Description

Automatic Transformer Coil Winding Machine With PLC Control System ZPX250 is a special winding equipment for winding small coils and other similar products. The transformer coil winding machine adopts a 2.2 kw motor to drive the winding shaft to wind round or flat wire. A servo motor of the transformer coil winding machine is also used to drive wire guide for laying wire when winding. The transformer coil winding machine is provided with main winding motor, servo motor, VFD, and so on. With the control system based on PLC, the transformer coil winding machine can run automatically as per the preset parameters.

Technical Parameters

Typical standard specifications of ZPX250 are shown below, however these can be easily modified as requested.

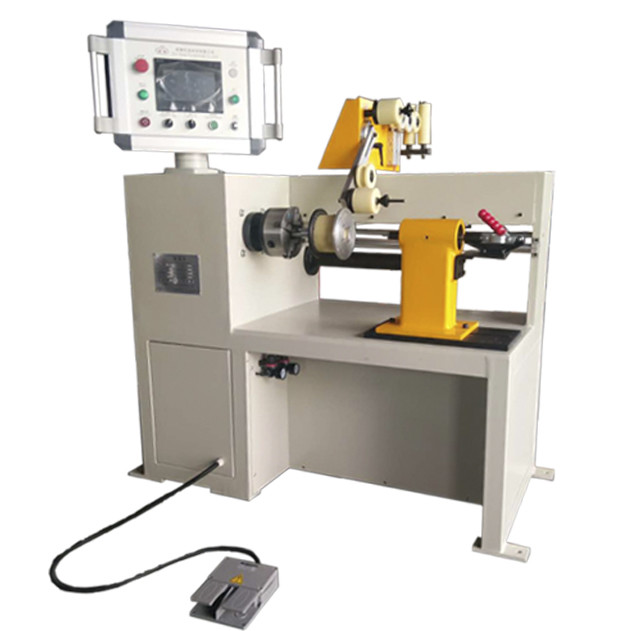

Fig 1: Automatic coil winding machine ZPX250's full view

Fig 2: Automatic coil winding machine ZPX250's wire guide
