Three Heads Wire Coil Winder With PLC Control System

Three Heads Wire Coil Winder With PLC Control System

Three Heads Wire Coil Winder With PLC Control System
Three Heads Wire Coil Winder With PLC Control System
video play

Large Image :  Three Heads Wire Coil Winder With PLC Control System Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX150-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Coil Winding Machine Wire Type: Flat Wire Or Round Wire
Control System: PLC Winding Speed: 0- 200rpm
Wire Guide: 3 Pcs Warranty: 12 Months
Color: Optional Wire Material: Copper / Aluminium Wire
High Light:

PLC Controlled Wire Coil Winder

,

Three Heads Wire Coil Winder

,

Three Heads Transformer Coil Winding Machine

Three Heads Wire Coil Winder Transformer Coil Winding Machine PLC Control





Description of transformer coil winding machine ZPX150-3



Transformer coil winding Machine ZPX150-3 is a special equipment for winding transformer coils and other similar products. The transformer coil winding machine is provided with three wire guides, which makes the coil winding machine wind three coils at once. The transformer coil winding machine can wind not only three coils with maximum length 150mm per coil, but also one coil with maximum length about 500mm. With touch screen, the transformer coil winding machine can be operated easily.





Quick details of transformer coil winding machine ZPX150-3

  • Winding copper or aluminium flat or round wire
  • Three wire guides
  • Maximum winding width 500mm
  • Winding three coils at one time
  • Winding motor power 4kw
  • Customized color



Technical parameters of transformer coil winding machine ZPX150-3



Typical standard specifications of ZPX150-3 are shown below, however these can be easily modified as requested.

Center Height: 900 mm
Square Shaft Size: 40x40x700 mm
Round Wire Diameter: 0.3~4.0 mm
Max. Flat Wire Size: 3x10 mm
Max. Rotating Diameter: 400 mm
Max. Each Coil Length: 150 mm
Winding Motor Power: 4kw
Winding Speed: 0~200 rpm
Winding Speed Regulation: Variable frequency and stepless speed regulation
Control system: PLC
Spread Pitch: Min. step: 0.01 mm
Counting Mode: 5-digit counting,
Max. Turns Number Preset: 9999.9

Three Heads Wire Coil Winder With PLC Control System 0

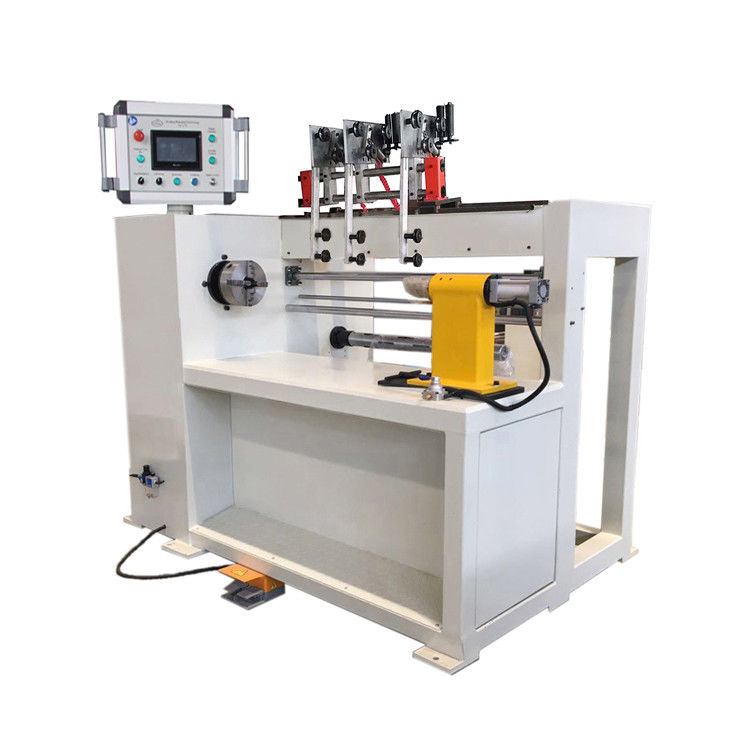

Fig 1: Transformer coil winding machine ZPX150-3's full view

Three Heads Wire Coil Winder With PLC Control System 1

Fig 2:Transformer coil winding machine ZPX150-3's back view

Three Heads Wire Coil Winder With PLC Control System 2

Three Heads Wire Coil Winder With PLC Control System 3

Three Heads Wire Coil Winder With PLC Control System 4

Three Heads Wire Coil Winder With PLC Control System 5

Three Heads Wire Coil Winder With PLC Control System 6

Three Heads Wire Coil Winder With PLC Control System 7

Three Heads Wire Coil Winder With PLC Control System 8

Three Heads Wire Coil Winder With PLC Control System 9
