Automatic Transformer HV Foil Winding Machine

1 set
MOQ
negotiable
Price
Automatic Transformer HV Foil Winding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Tranformer HV Foil Winding Machine
Usage: Winding Foil Coil
Cu Foil Thickness: 0.15 ~ 2.0mm
Al Foil Thickness: 0.2 ~ 3.0mm
Winding Speed: 0 ~ 200rpm
Power: 18.5kw
Color: Optional
Warranty: 12 Months
Highlight:

HV Foil Winding Machine

,

Automatic Transformer Foil Winding Machine

,

HV Transformer Foil Winding Machine
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: GY-BRJ
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

Automatic Transformer HV Foil Winding Machine





Introduction of HV foil winding machine GY-BRJ



Automatic HV foil winding machine GY-BRJ is dedicated to winding high voltage transformer foil coils ( Dry type high voltage coils ). During winding process, the machine provides constant tension. This machine can rectify deviation automatically, stop at the presetting stop point and weld lead-out and lead-in systems. According to presetting parameters, this machine can achieve precise axial moving with the infrared positioning function.



Main Components of HV foil winding machine GY-BRJ



  • Main winding motor
  • PLC
  • Touch Screen
  • VFD
  • LV electrical device
  • Pneumatic System
  • Guide rail
  • ARC Welder



Technical parameters of HV foil winding machine GY-BRJ



Typical standard specifications of GY-BRJ are shown below and these can be easily modified as requested.



Foil Width: 20 ~ 200mm
Conductor Foil Material: Copper or Aluminum
Al Foil Thickness: 0.2 ~ 3.0 mm
Cu Foil Thickness: 0.15 ~ 2.0 mm
Inner Supply Coil(Min/Max): Φ300mm/Φ400mm
Outer Supply Coil(Max.): Φ1000mm
Max. Coil Weight: 450kg
Insulation Thickness: 0.02 ~ 0.15mm
Insulation Supply Coil ID: Φ76mm
Maximum Insulation Supply Coil OD: Φ400mm
Maximum Winding Length(with lead bar): 1600mm(2050mm)
Wound Coil Inner Diameter: Ø300mm
Maximum Wound Coil Outer Diameter: Ø1100mm
Maximum Wound Coil Weight: 1500kg
Welding Mode: TIG,350A
Mandrel Torque: 1800N.m
Tension On Conductor: 50 ~ 3000N
Foil Decoiler Number: 1 set
Insulation Decoiler Number: 2 sets
Winding Speed: 0 ~ 200rpm
Motor Power: 18.5KW
Foil Edge Deburring Unit: 1 set
Cleaning Unit: 1 set



Automatic Transformer HV Foil Winding Machine 0

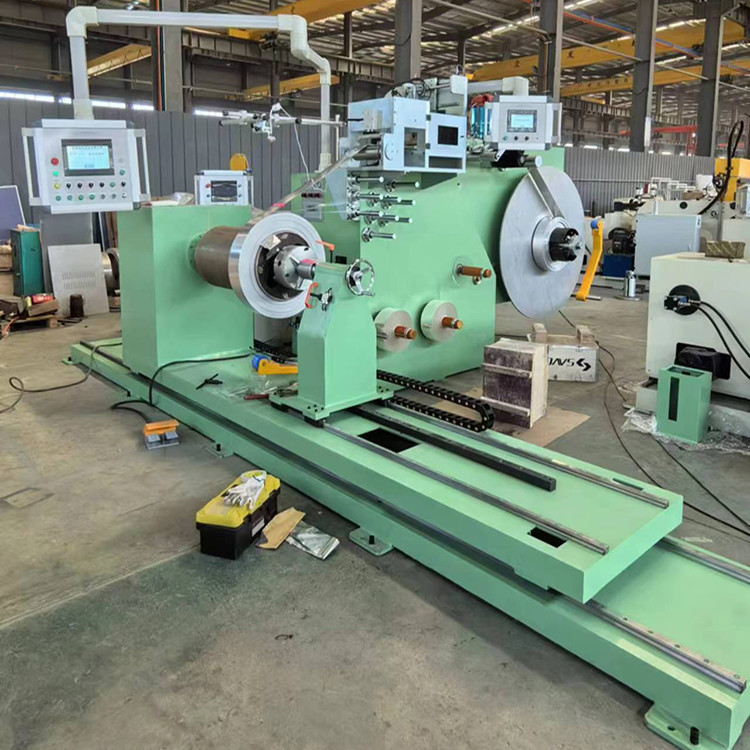

Fig 1: Transformer HV foil winding machine GY-BRJ's front view


Automatic Transformer HV Foil Winding Machine 1
Fig 2: Transformer HV foil winding machine GY-BRJ's back view

Automatic Transformer HV Foil Winding Machine 2Automatic Transformer HV Foil Winding Machine 3Automatic Transformer HV Foil Winding Machine 4Automatic Transformer HV Foil Winding Machine 5Automatic Transformer HV Foil Winding Machine 6Automatic Transformer HV Foil Winding Machine 7Automatic Transformer HV Foil Winding Machine 8Automatic Transformer HV Foil Winding Machine 9Automatic Transformer HV Foil Winding Machine 10
