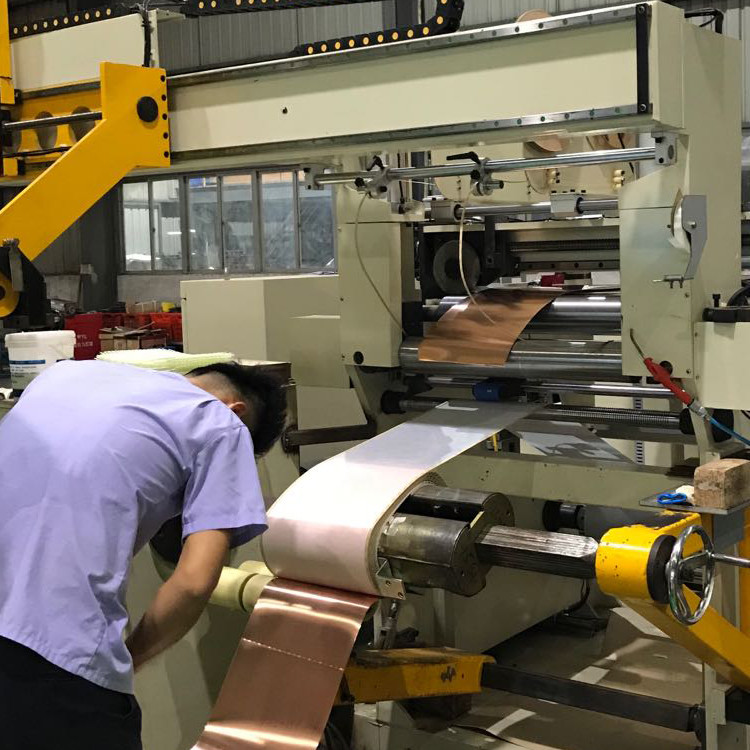

Automatic Transformer Two Layers Foil Film Winder

Automatic Transformer Foil Winding Machine Two Layers Foil Film Winder

Description of transformer foil winding machine BRJ800-2

Transformer foil winding machine BRJ800-2 is a professional winder equipment, which can be used to wind both copper foil and aluminium foil to make foil coils. This kind of foil coils can be used to make transformer or other similar products. With 15kw motor, the transformer foil winding machine is with big torque. The foil winding machine can wind one or two layers of foil and one or two layers of insulation paper. The transformer foil winding machine features slow starting, smooth running, high automation, full function, strong pulling force, easy operation and so on.

Quick details of transformer foil winding machine BRJ800-2

1) Two foil decoilers

2) Two insulation paper decoilers

4) End-fill strip feeders

5) Cleaning system

6) Deburring system

7) Edge alignment system

8) Automatic welding unit

Technical parameters of transformer foil winding machine BRJ800-2

Typical standard specifications of transformer foil winding machine BRJ800-2 are shown below, however the machine can also be manufactured as requested.

Fig 1: Transformer foil winding machine BRJ800-2's front view

Fig 2: Transformer foil winding machine BRJ800-2's back view
