Description of transformer foil winding machine BRJ800-2

Transformer foil winding machine BRJ800-2 is a special foil conductor winder equipment. The transformer foil winding machine is mainly used to wind cast resin transformer coils. With 15kw motor, this kind of transformer foil winding machine has enough torque to wind copper foil or aluminium foil  with maximum width 800mm. The transformer foil winding machine is provided with TIG welding unit, which can weld foil and bus bar together. With two foil decoilers and two insulation decoilers, the transformer foil winding machine can handle one or two layers of copper or aluminium foil and one or two layers of insulation paper. The transformer foil winding machine features slow starting, smooth running, high torque and so on.

Quick details of transformer foil winding machine BRJ800-2

1)  Two foil decoilers

2)  Two insulation paper decoilers

4)  End-fill strip feeder

5)  Cleaning system

6)  Deburring system

7)  Edge alignment system

8)  Automatic welding unit

Technical parameters of transformer foil winding machine BRJ800-2

Typical standard specifications of transformer foil winding machine BRJ800-2 are shown below and the foil winding machine can also be manufactured as requested.

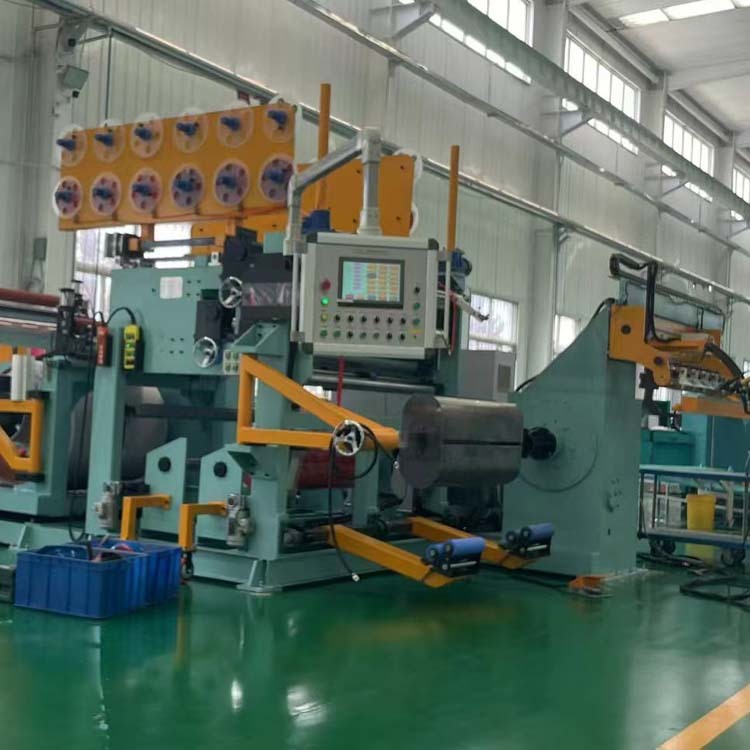

Fig 1: Transformer foil winding machine BRJ800-2's front view

Fig 2: Transformer foil winding machine BRJ800-2's back view
