Description of transformer foil winding machine XB-BRJ300-2

Transformer foil winding machine XB-BRJ300-2 can be used to wind copper foil or aluminium foil with maximum width 300mm. The transformer foil winding machine is provided with cold welding unit for welding bus bar and foil together. The transformer foil winding machine is provided with two foil decoilers, which makes the winding machine wind one or two layers of foil. The transformer foil winding machine can also wind one or two layers of insulation paper. With a touch screen, the transformer foil winding machine is very ease to be operated.

Quick details of transformer foil winding machine XB-BRJ300-2

• Two foil decoilers
• Two insulation decoilers
• Maximum foil width 300mm
• Motor power 5.5kw
• Control system based on PLC
• Winding speed 35 rpm

Technical Parameters of transformer foil winding machine XB-BRJ300-2

Typical standard specifications of transformer foil winding machine XB-BRJ300-2 are shown below, however these can be modified as requested.

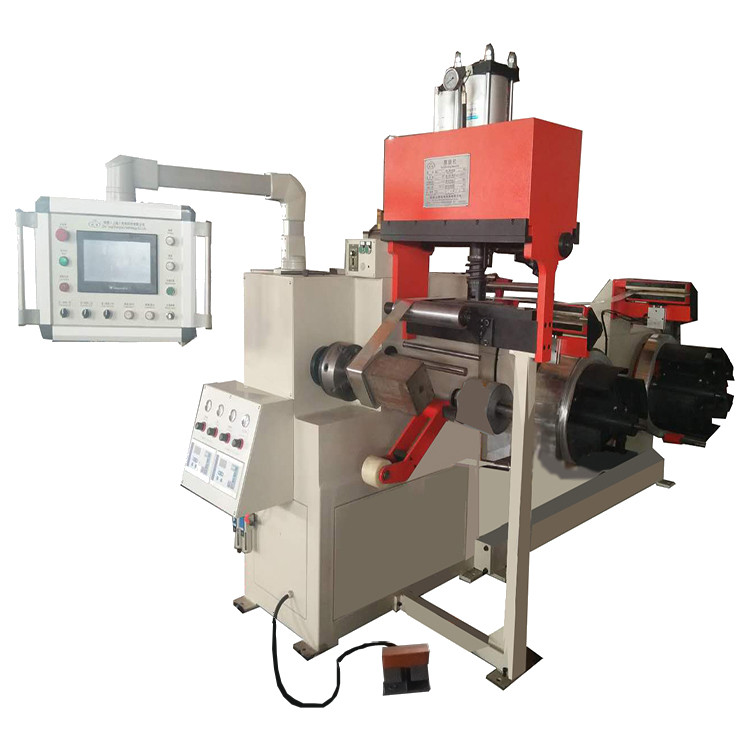

Fig 1: Transformer foil winding machine XB-BRJ300-2's front view

Fig 2: Transformer foil winding machine XB-BRJ300-2's cold welding unit
