Automatic Cold Pressure Welding Dry Transformer Foil Winding Machine
Description:
Automatic Cold Pressure Welding Dry Transformer Foil Winding Machine BRJ300-2 is a special foil winding machine for winding transformer foil coils and other similar products. The copper or aluminium strip with max width 300mm can be wound with this machine. The machine can handle one or two layers of foil and one or two layers of insulation paper. Control system of the machine is based on PLC, which can make the machine run automatically as per the parameters input. The transformer foil winding machine features slow staring, smooth running, high automation, full function, etc. It is very easy to operate the machine.
Quick Detail:
Technical Parameters
Typical standard specifications of transformer foil winding machine BRJ300-2 are shown below, however, the foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 300mm |
| Finished Coil OD. : | 600mm |
| Coil Shape: | Round, Oval and Rectangle etc. |
| Conductor Foil Material: | Copper or aluminum |
| Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Al Foil Thickness: | 0.3 ~ 3.0mm |
| Foil Material ID.: | 500mm |
| Foil Material OD.: | ≤ 1000mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 350mm |
| Foil Decoiler Expanding Range: | Φ420 ~ Φ520mm |
| Max Coil Weight: | 750kg |
| Rectifying Mode: | Photoelectric sensing |
| Rectifying Deviation Precision: | ±0.5mm |
| Cleaning Unit: | pneumatic |
| Insulation Paper Decoiler Number: | 1set |
| Insulation Paper Coil OD.: | ≤ 400mm |
| Insulation Paper Coil ID.: | 76mm |
| Insulation Decoiler Width: | 350mm |
| Insulation Paper Decoiler Shaft: | Expandable (pneumatic open/close action) |
| Winding Speed: | 0 ~ 35 RPM |
| Winding Power: | 5.5kw |
| Cold Welding Device: | 1 set |
| Positioning Device: | 1set |
| Grinding Device: | 1 set |
| Cold Welding Mould: | 6 sets |
| Control system: | PLC |
| Operation Interface: | Touch screen |
| Counting Range: | 0 - 9999.9 |

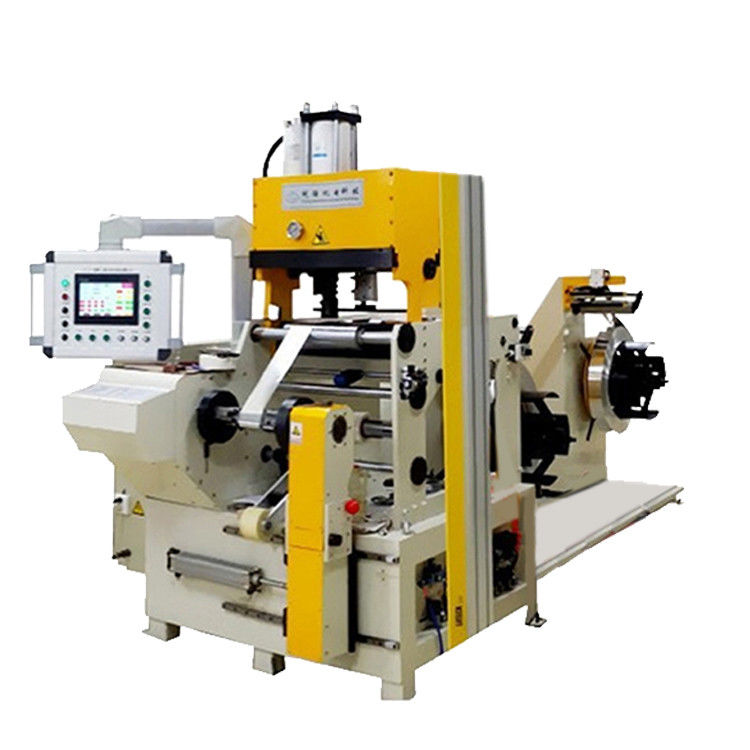

Fig 1: Transformer foil winding machine BRJ300-2's full view

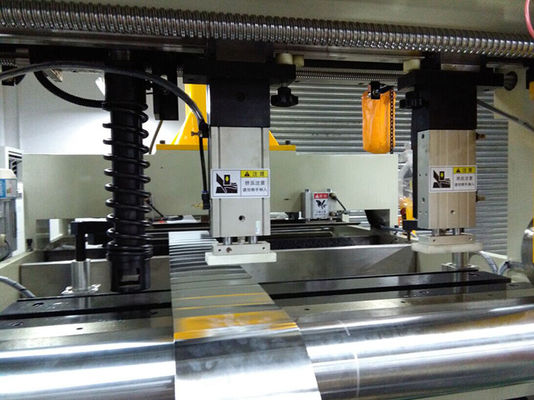

Fig 2: Transformer foil winding machine BRJ300-2's welding effect
