Cast Resin LV Transformer Copper Foil Winding Machine Automatic Strip Winder

Automatic Strip Winder Cast Resin LV Transformer Copper Foil Winding Machine

1) Description of copper foil winding machine

Cast Resin LV Transformer copper foil winding machine can wind the foil conductor with maximum width 1000mm, the copper foil winding machine can handle:

• Copper foil strip from 0.2 mm to 2.0mm thickness
• Aluminium foil strip from 0.3mm to 3.0 mm thickness
• Max. foil width 1000mm
• Two layers of foil
• Two layers of insulation paper
• Weld foil and bus bar together

The copper foil winding machine is provided with

• two pieces of foil decoilers
• two insulation decoilers
• photoelectric sensor
• pressing rollers
• control system based on PLC to control the machine precisely
• touch screen to make the operation easy and intuitive

2) ​Main Components of copper foil winding machine

• Main frame
• Winding unit
• Foil decoiler
• Insulation decoiler
• End-fill strip feeder
• Foil deburring system
• Edge alignment system
• Automatic welding unit

3) Technical Parameters of copper foil winding machine

Typical standard specifications of BRJ1000-2 are shown below, however these can be easily modified as requested.

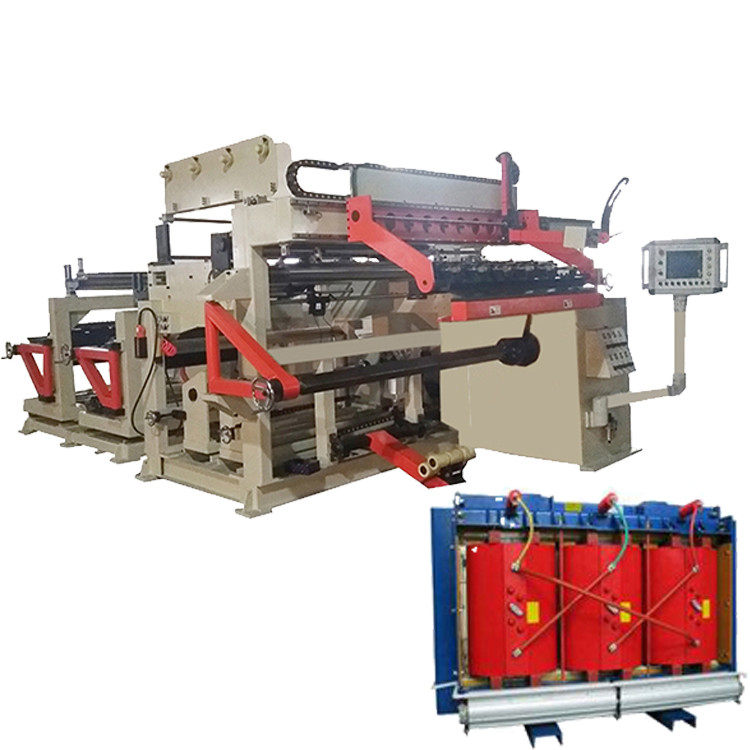

Fig 1: Copper foil winding machine BRJ1000-2's front view

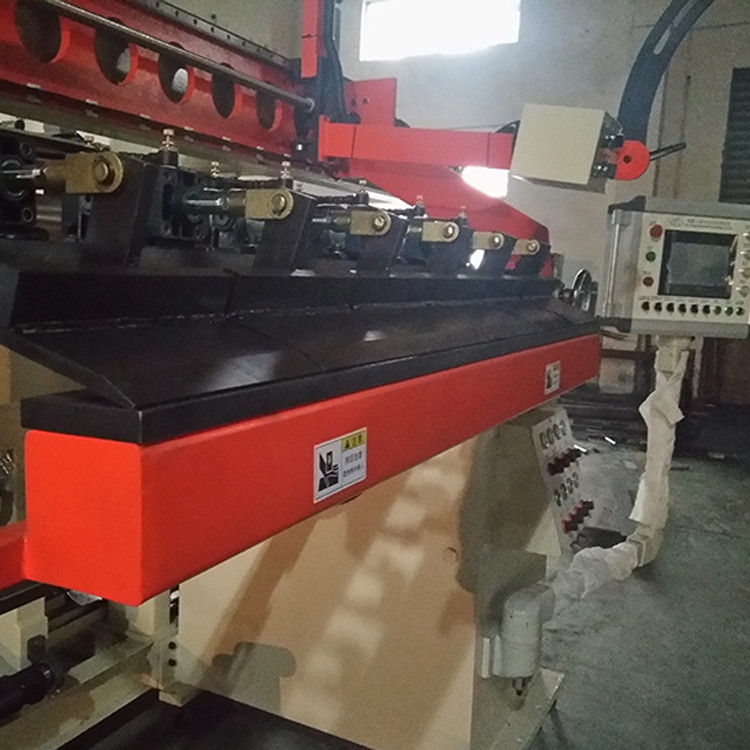

Fig 2: Copper foil winding machine BRJ1000-2's welding unit
