Cheap Semi Automatic Transformer Coil Winding Machine Wire Winder 200rpm

Cheap Semi Automatic Transformer Coil Winding Machine Wire Winder

Description of transformer coil winding machine GDY-1T

Transformer coil winding machine GDY-1T is one kind of semi automatic wire winder, which can wind both copper wire and aluminium wire. Moreover, the transformer coil winding machine can also wind flat wire and round wire. The transformer coil winding machine is provided with a counter for counting turns when winding. With a potentiometer on the screen board, the winding speed of the transformer coil winding machine can be adjusted steplessly. Moreover, with a foot pedal, the rotating direction of the transformer coil winding machine can also be switched. It is very easy to operate the transformer coil winding machine.

Quick details of transformer coil winding machine GDY-1T

• Winding copper or aluminium wire
• Maximum winding width 800mm
• Maximum capacity 1000kg
• Winding power 3kw
• Winding shaft size 40x40x1000mm
• Two speed gear

Specifications of transformer coil winding machine GDY-1T

Typical standard specifications of coil winding machine GDY-1T are shown below and the coil winding machine can also be manufactured as requested.

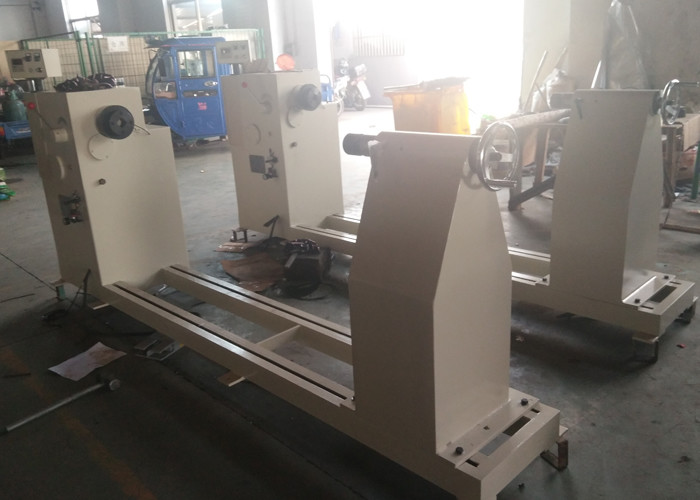

Fig 1: Transformer coil winding machine GDY-1T's full view

Fig 2: Transformer coil winding machine GDY-1T's tailstock
