| Name: | Transformer Coil Winding Machine | Usage: | Winding Wire Coil |
|---|---|---|---|
| Center Heigth: | 1000mm | Shaft Size: | 40x40mm |
| Tailstock: | Split Type | Machine Color: | As Requested |
| Counter: | Digital Type | Rotating Speed: | 0 ~ 200rpm |
| Highlight: | Semi Automatic Transformer Coil Winding Machine,Semi Automatic Transformer Coil Winder Machine,200RPM Transformer Coil Winder Machine |
||
Cheap Semi Automatic Transformer Coil Winding Machine Wire Winder
Description of transformer coil winding machine GDY-1T
Transformer coil winding machine GDY-1T is one kind of semi automatic wire winder, which can wind both copper wire and aluminium wire. Moreover, the transformer coil winding machine can also wind flat wire and round wire. The transformer coil winding machine is provided with a counter for counting turns when winding. With a potentiometer on the screen board, the winding speed of the transformer coil winding machine can be adjusted steplessly. Moreover, with a foot pedal, the rotating direction of the transformer coil winding machine can also be switched. It is very easy to operate the transformer coil winding machine.
Quick details of transformer coil winding machine GDY-1T
Specifications of transformer coil winding machine GDY-1T
Typical standard specifications of coil winding machine GDY-1T are shown below and the coil winding machine can also be manufactured as requested.
| Center Height: | 1000mm |
| Shaft Size: | 40x40x1000mm |
| Flange Square Hole Size: | 40x40mm |
| Winding Speed: | 0 ~ 200rpm |
| Speed Gear: | 2 pcs |
| Maximum Winding Winding: | 800mm |
| Counting Range: | 0 ~ 9999.9 |
| Maximum Capacity: | 1000KG |
| Power: | 3KW |
| Total Weight: | 500 kg |
| Dimension(LxWxH): | 2800x700x1400mm |

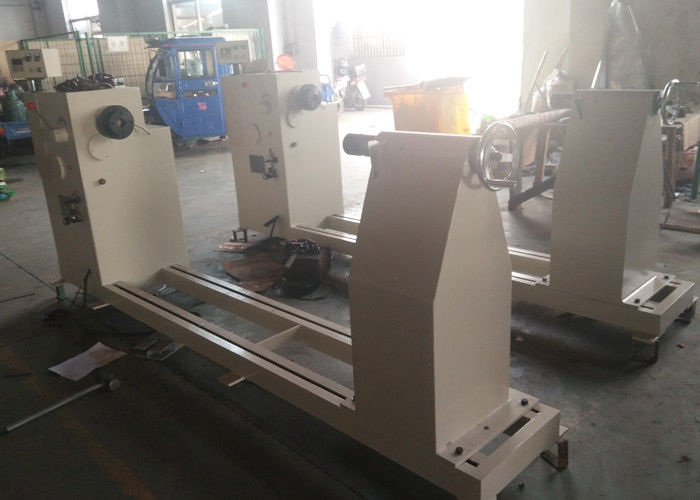

Fig 1: Transformer coil winding machine GDY-1T's full view
Fig 2: Transformer coil winding machine GDY-1T's tailstock
