Copper Aluminium Strip Winder Small Transformer Winding Machine Cold Welding

Copper Aluminium Strip Winder Cold Welding Small Sized Transformer Foil Winding Machine

Description of transformer foil winding machine BRJ200

Cold welding small sized transformer foil winding machine BRJ200 is mainly used to winding foil coil with maximum width 200mm. The transformer foil winding machine can wind one layer of copper or aluminium strip. The transformer foil winding machine is provided with cold welding unit, which can be used to weld foil and bus bar together. The transformer foil winding machine’s control system is based on PLC. With its programmability, the transformer foil winding machine can be operated easily.

Quick details of transformer foil winding machine

1. Maximum foil width 200mm

2. Expansible foil decoiler

3. With photoelectric sensor, correcting automatically

4. Pressing roller

5. Servo motor 4kw

6. Pneumatic system

Technical parameters of transformer foil winding machine

Typical standard specifications of BRJ200 are shown below, however these can be easily modified as requested.

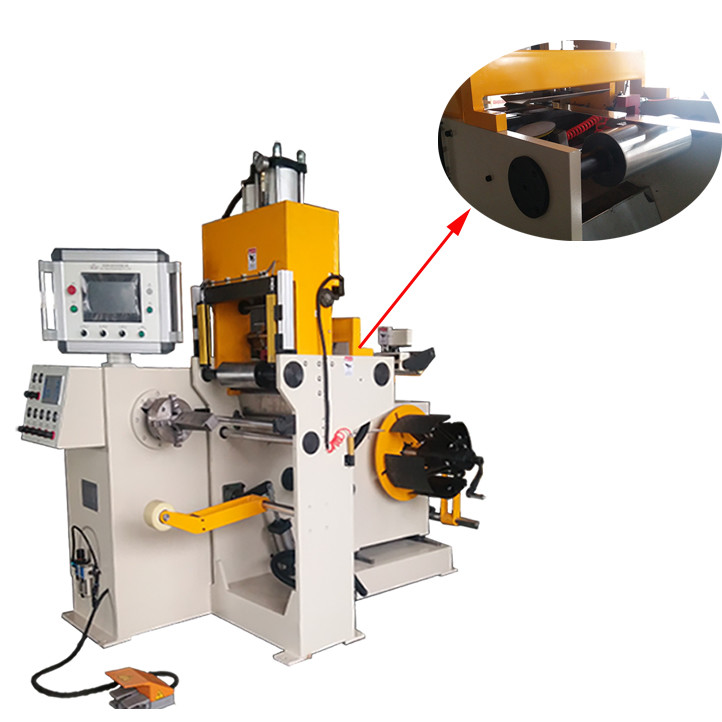

Fig 1: Transformer foil winding machine BRJ200's full view

Fig 2: Transformer foil winding machine BRJ200's welding unit
