Copper And Aluminium Wire Transformer Coil Winder Automatic

Automatic Copper And Aluminium Wire Winder Oil Transformer Coil Winding Machine

Description of transformer coil winding machine ZPX1000

Automatic transformer coil winding machine ZPX1000, maquinas bobinadoras de transformadores, adopting automatic wire laying and tension technologies, can be used to wind different shapes of coils, such as round, rectangle and so on. The wound coils can be used in transformers and other similar products. The transformer coil winding machine is provided with main winding motor, automatic wire laying unit, layer insulation unit, tension adjustable pay-off unit, pneumatic system, PLC based control system, and servo motors, etc. PLC makes the machine be programmable, which riches the functions of the machine. The transformer coil winding machine features slow starting, smooth running, high automation, full functions, and strong driving force, etc.

Main components of transformer coil winding machine ZPX1000

1. Main frame

2. Winding unit

3. Automatic wire laying unit

4. Insulation decoiler

5. Electronic control system

6. Pneumatic system

Technical parameters of transformer coil winding machine ZPX1000

Typical standard specifications of transformer coil winding machine ZPX1000 are shown below, however, the transformer coil winding machine can also be manufacctured as requested.

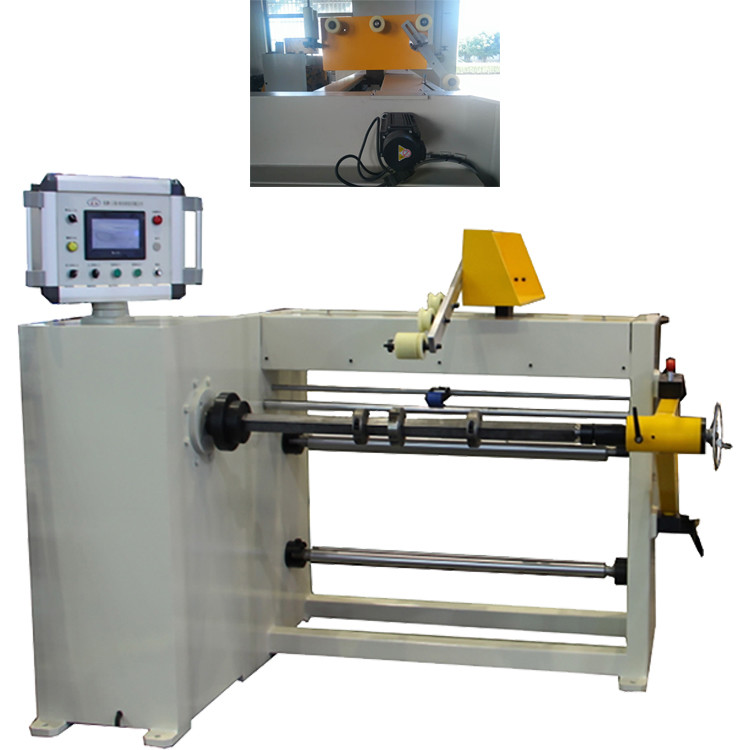

Fig 1: Transformer coil winding machine ZPX1000's front view

Fig 2: Transformer coil winding machine ZPX1000's wire guide driven by sero motor
