Programmable Automatic Copper Wire Winding Machine Oil Type

Programmable Automatic Copper Wire Winder Oil Type Transformer Coil Winding Machine

Introduction of transformer coil winding machine ZPX600

Transformer coil winding machine ZPX600 is one model of automatic wire winding machine for making transformer coil. The transformer coil winding machine can be used to wind round or flat wires and the conductor can be copper wire or aluminium wire. This transformer coil winding machine is provided with a 4kw motor as main winding motor to drive the winding shaft. In this transformer coil winding machine, there is one wire guide driven by a 750w servo motor, which guarantees the precision of laying wire. The user friendly interface of the touch screen makes it easy to operate the transformer coil winding machine. The foot pedal can be used to switch the rotating direction of the winding shaft . The potentiometer on the screen board is used to adjust the winding speed of the transformer coil winding.

Main Features of transformer coil winding machine

• programmable, the actions of the machine can be customized
• easy operation, after inputting the relevant parameters, just pressing the foot pedal, the machine will wind the wire automatically
• slow starting, the start speed is very slow for safety,
• smooth running, during running, the machine is very stable
• strong pulling force, 4kw motor provides big torque
• high reliability, high quality provides high reliability
• high accuracy, servo motor and PLC guarantee the high accuracy
• full functions, the machine can achieve many activity through different programs

Main Parameters of transformer coil winding machine ZPX600

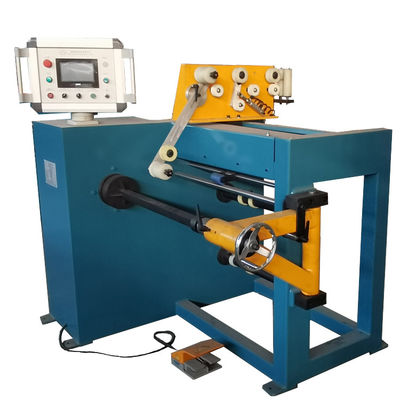

Fig 1: Transformer coil winding machine ZPX600's full view

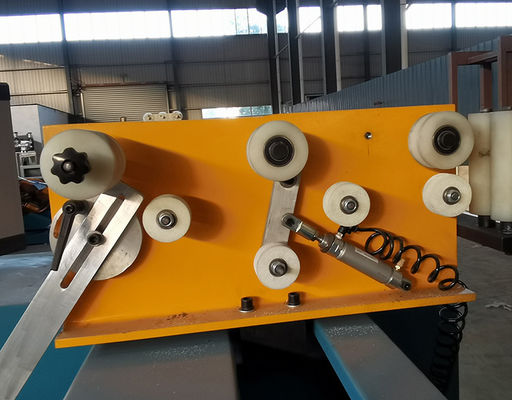

Fig 2: Transformer coil winding machine ZPX600's winding shaft
