Copper Programmable Two Layers Foil Winding Machine Making Dry Transformer Coil

Programmable Two Layers Copper Foil Winding Machine Making Dry Transformer Coil


Description of copper foil winding machine BRJ1200-2

Copper foil winding machine BRJ1200-2 is one model of foil winding machines, i.e. Máquina de bobinado de láminas de aluminio, which can be used to wind both copper foil and aluminium foil. The copper foil winding machine can handle two layers of copper or aluminium foil with maximum width 1200mm. With TIG welding unit, the copper foil winding machine can weld copper foil and copper bus bar together and weld aluminium foil and aluminium bus bar together. Based on PLC, the control system makes the copper foil winding machine have rich functions and be operated easily.


Main components of copper foil winding machine BRJ1200-2

• Main strong frame
• Winding unit
• Foil decoiler
• Insulation decoiler
• End-fill strip feeder
• Cleaning system
• Cutting system
• Deburring system
• TIG welding unit
• Electronic control system


Technical parameters of copper foil winding machine BRJ1200-2

Typical standard specifications of copper foil winding machine BRJ1200-2 are shown below, however, these can be easily modified as requested.

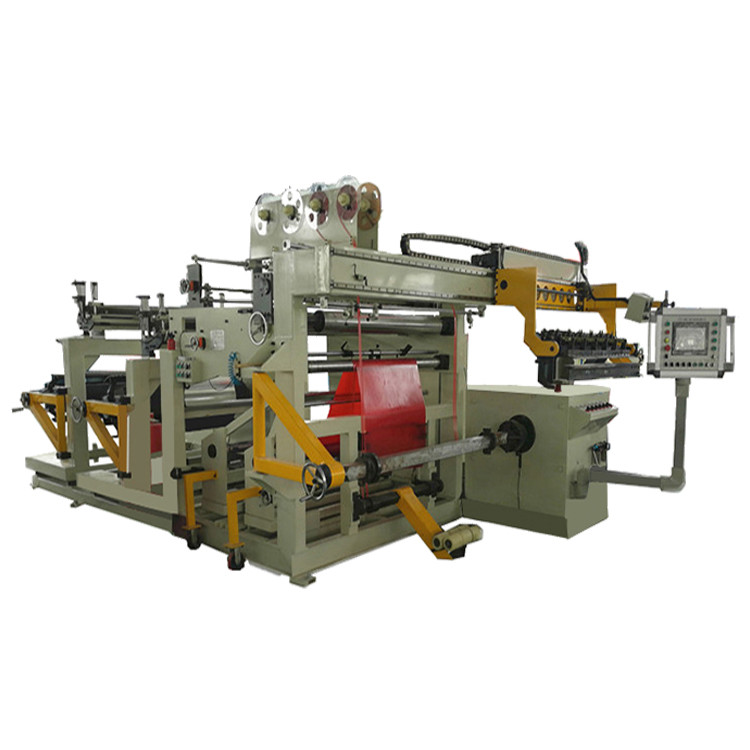

Fig 1: Copper foil winding machine BRJ1200-2's front view

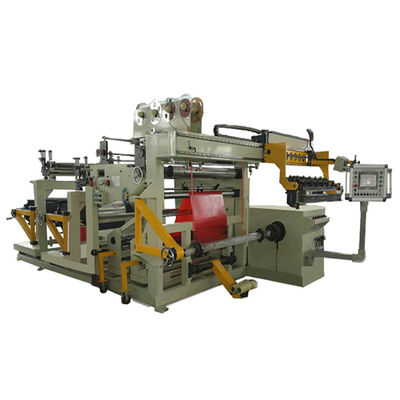

Fig 2: Copper foil winding machine BRJ1200-2's back view
