Home ProductsCopper Foil Winding Machine

Copper Programmable Two Layers Foil Winding Machine Making Dry Transformer Coil

Copper Programmable Two Layers Foil Winding Machine Making Dry Transformer Coil

Copper Programmable Two Layers Foil Winding Machine Making Dry Transformer Coil
Copper Programmable Two Layers Foil Winding Machine Making Dry Transformer Coil
video play

Large Image :  Copper Programmable Two Layers Foil Winding Machine Making Dry Transformer Coil Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: BRJ1200-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD40000 ~ 50000
Packaging Details: seaworth packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Detailed Product Description
Product Name: Transformer Foil Winding Machine Usage: Winding Foil Coil
Cu Strip Thickness: 0.2 ~ 2.0mm Al Strip Thickness: 0.3 ~ 3.0mm
Welding: TIG Welding Machine: 1 Set
Color: As Requested Warranty: 12 Months
High Light:

Copper Programmable Foil Winding Machine

,

Transformer Coil Foil Winding Machine

,

2 Layer Copper Foil Winding Machine

Programmable Two Layers Copper Foil Winding Machine Making Dry Transformer Coil


Description of copper foil winding machine BRJ1200-2

Copper foil winding machine BRJ1200-2 is one model of foil winding machines, i.e. Máquina de bobinado de láminas de aluminio, which can be used to wind both copper foil and aluminium foil. The copper foil winding machine can handle two layers of copper or aluminium foil with maximum width 1200mm. With TIG welding unit, the copper foil winding machine can weld copper foil and copper bus bar together and weld aluminium foil and aluminium bus bar together. Based on PLC, the control system makes the copper foil winding machine have rich functions and be operated easily.


Main components of copper foil winding machine BRJ1200-2

  • Main strong frame
  • Winding unit
  • Foil decoiler
  • Insulation decoiler
  • End-fill strip feeder
  • Cleaning system
  • Cutting system
  • Deburring system
  • TIG welding unit
  • Electronic control system


Technical parameters of copper foil winding machine BRJ1200-2

Typical standard specifications of copper foil winding machine BRJ1200-2 are shown below, however, these can be easily modified as requested.


Foil width:200 ~ 1,200mm
Maximum Wounded Coil OD:Ø1,000mm
Finished Coil Shape:oval, circle and rectangular, etc
Conductor Material:Copper or Aluminum strip
Al Foil Thickness:0.3 ~ 3.0 mm
Cu Foil Thickness:0.2 ~ 2.0 mm
Maximum Conductor Material OD.:Ø 1,000mm
Conductor Material ID.:Ø 500mm (optional)
Foil Decoiler Expanding Range:Ø 420 ~ 520mm
Winding Power:18KW
Welding Mode:TIG
Cutting Mode:Electric rolling shear
Insulation Decoiler:pneumatic open/close action
End-fill Strip Feeder:8 pcs
Edge Alignment System:Photoelectric sensing
User Interface:10 inches (254mm) touch screen
Counting Range:0 - 9999.9

Copper Programmable Two Layers Foil Winding Machine Making Dry Transformer Coil 0

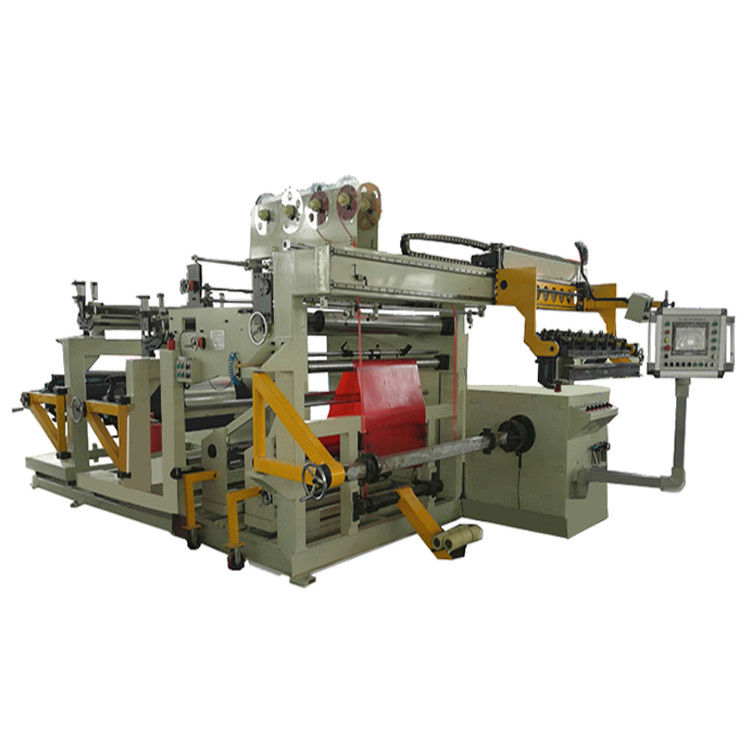

Fig 1: Copper foil winding machine BRJ1200-2's front view

Copper Programmable Two Layers Foil Winding Machine Making Dry Transformer Coil 1

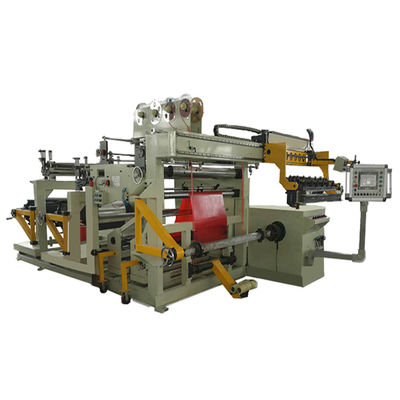

Fig 2: Copper foil winding machine BRJ1200-2's back view

Copper Programmable Two Layers Foil Winding Machine Making Dry Transformer Coil 2Copper Programmable Two Layers Foil Winding Machine Making Dry Transformer Coil 3Copper Programmable Two Layers Foil Winding Machine Making Dry Transformer Coil 4Copper Programmable Two Layers Foil Winding Machine Making Dry Transformer Coil 5Copper Programmable Two Layers Foil Winding Machine Making Dry Transformer Coil 6Copper Programmable Two Layers Foil Winding Machine Making Dry Transformer Coil 7Copper Programmable Two Layers Foil Winding Machine Making Dry Transformer Coil 8Copper Programmable Two Layers Foil Winding Machine Making Dry Transformer Coil 9
