Copper Wire Coiling Machine Automatic Coil Winding Machine 160rpm

1 set
MOQ
negotiable
Price
Copper Wire Coiling Machine Automatic Coil Winding Machine 160rpm
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Automatic Coil Winding Machine
Winding Power: 4kw
Winding Speed: 0 ~ 160rpm
Conductor Wire: Flat Or Round Wire
Control System: PLC
Display Mode: Touch Screen
Tension Control: Pneumatic
Winding Direction: Forward/Reverse
Wire Diameter: 0.3~ 3.0mm
Machine Color: As Requested
Highlight:

Copper Wire automatic coil winding machine

,

160RPM automatic coil winding machine

,

Copper Wire Coiling Machine Automatic
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX800
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Product Description

Copper Wire Coiling Machine Automatic Coil Winding Machine





Description of automatic coil winding machine ZPX800



Automatic coil winding machine ZPX800 is a professional wire coil winder. The coil winding machine can be used to wind copper wire coils or aluminium wire coils. The automatic coil winding machine is provided with PLC, which make the machine have high automation. With one wire guide, the coil winding machine can lay the wire automatically when winding the wire. With HMI, the automatic coil winding machine can be operated easily.





Main parameters of automatic coil winding machine ZPX800



The typical standard specifications of automatic coil winding machine ZPX800 is as following and the coil winding machine can also be manufactured as requested.

Center Height: 900mm
Winding Shaft Size: 40x40x1100mm
Maximum Winding Width: 800mm
Winding Motor: 4kw
Winding Speed: 0 ~ 160 rpm
Speed Regulation: stepless
Max. Flat Wire Size: 5X12mm
Round Wire Diameter: Ø0.3mm ~ Ø5.0mm
Maximum Wound Coil OD.: Ø800mm
Maximum Capacity: 700kg
Counting Mode: 5-digit counting
Counting Range: 0 ~ 9999.9



Copper Wire Coiling Machine Automatic Coil Winding Machine 160rpm 0

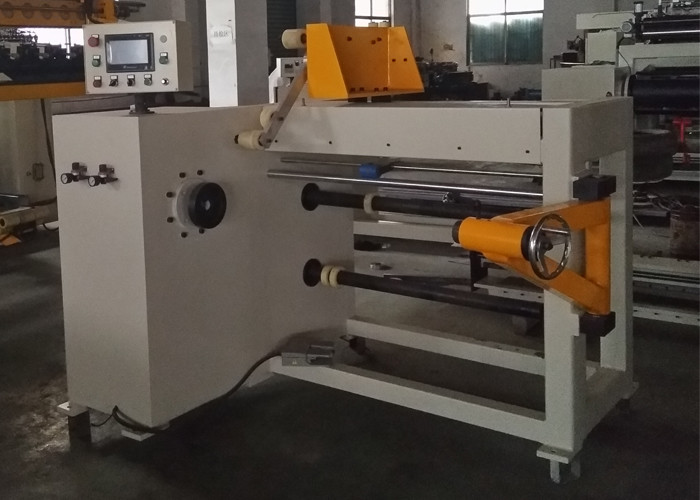

Fig 1: Automatic coil winding machine ZPX800's front view



Copper Wire Coiling Machine Automatic Coil Winding Machine 160rpm 1

Fig 2: Automatic coil winding machine ZPX800's wire guide



Copper Wire Coiling Machine Automatic Coil Winding Machine 160rpm 2Copper Wire Coiling Machine Automatic Coil Winding Machine 160rpm 3Copper Wire Coiling Machine Automatic Coil Winding Machine 160rpm 4Copper Wire Coiling Machine Automatic Coil Winding Machine 160rpm 5Copper Wire Coiling Machine Automatic Coil Winding Machine 160rpm 6Copper Wire Coiling Machine Automatic Coil Winding Machine 160rpm 7Copper Wire Coiling Machine Automatic Coil Winding Machine 160rpm 8Copper Wire Coiling Machine Automatic Coil Winding Machine 160rpm 9Copper Wire Coiling Machine Automatic Coil Winding Machine 160rpm 10
