Description of copper foil winding machine BRJ700

Copper foil winding machine BRJ700 is a professional conductor foil winder. The foil winding machine is mainly used to wind copper foil or aluminium foil to make foil coils. This kind of wound foil coil can be used to make cast resin transformers and other similar products. With one set of foil decoiler, the copper foil winding machine can wind one layer of copper foil or aluminium foil. With two insulation decoilers, the copper foil winding machine can wind one or two layers of insulation paper. The copper foil winding machine is provided with a set of TIG welding unit. With the TIG welding unit, the copper foil winding machine can weld foil with bus bar together. The copper foil winding machine is also provided with PLC and HMI. The copper foil winding machine feautres slow starting, smooth running, easy operation and so on.

Quick detail of copper foil winding machine BRJ700

• Winding foil with maximum 700mm width
• Winding both copper foil and aluminium foil
• Conductor foil with ID 500mm and OD 1000mm maximum
• TIG welding
• Pressing roller
• Customized color

Technical Parameters of copper foil winding machine BRJ700

Typical standard specifications of copper foil winding machine BRJ700 are shown below and the copper foil winding machine can also be manufactured as requested.

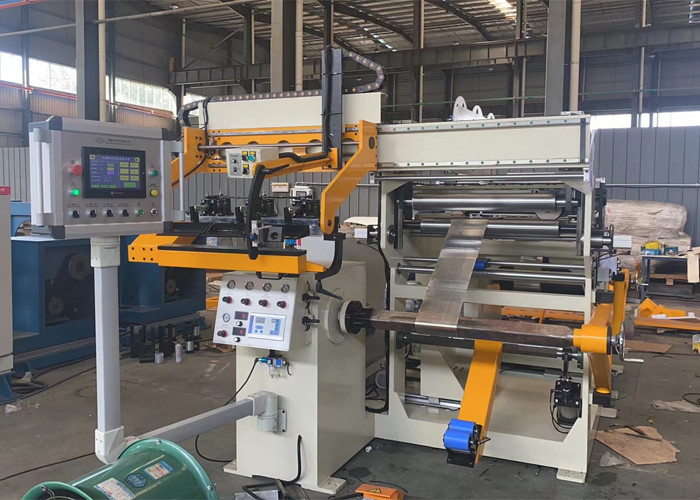

Fig 1: Copper foil winding machine BRJ700's front view


Fig 2: Copper foil winding machine BRJ700's back view
