Name: High Speed Coil Winder Wire Winding Automatic Coil Winding Machine
Brand: Suzhou Tronsing Technology Co., Ltd
SKU: ZPX200-2
Price: 10,000.00 USD
Availability: InStock

High Speed Coil Winder Wire Winding Automatic Coil Winding Machine

1 set

MOQ

negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Coil Winding Machine

Function: Winding Wire Coil

Motor Power: 5.5kw

Winding Speed: 0 ~ 400rpm

Conductor: Copper Or Aluminium Wire

Wire Type: Round Wire

Wire Size: 0.3mm ~ 3.0mm

Warranty: 12 Months

Highlight:

Wire Winding Coil Winder

High Speed Coil Winder

Automatic Coil Winder

Basic Infomation

Place of Origin: China

Brand Name: STT

Certification: CE

Model Number: ZPX200-2

Payment & Shipping Terms

Packaging Details: seaworthy packing

Delivery Time: 35 days

Payment Terms: T/T, L/C

Supply Ability: 100 sets per year

Gallery

High Speed Coil Winder Wire Winding Automatic Coil Winding Machine

Product Description

High Speed Coil Winder Wire Winding Automatic Coil Winding Machine

Description of automatic coil winding machine ZPX200-2

Automatic coil winding machine ZPX200-2 is a high effective wire winder equipment. With two wire guides, the automatic coil winding machine can wind 2 coils at the same time. The automatic coil winding machine is provided with PLC control system and HMI, which make the winding machine be with high automation. The automatic coil winding machine features high automation, full functions, easy operation and strong driving force, etc.

Technical Parameter of automatic coil winding machine ZPX200-2

Typical standard specifications of coil winding machine ZPX200-2 are shown below and the automatic coil winding machine can also be manufactured as requested.

Centre height:	1000mm
Wire guide:	2 pcs
Maximum per coil height:	200mm
Round wire diameter:	Ø0.3 ~ 3.0mm
Max. finished coil OD.:	Ø250mm
Max. coil weight:	150kg
Winding shaft size:	40x40mm
Winding speed:	0 ~ 400RPM
Speed regulation:	Variable frequency and stepless speed regulation
Motor power:	5.5kw
Automatic wire laying:	Diameter of wire adjustable, Min. step: 0.01mm
Counting mode:	5-digit counting
Counting range:	0 - 9999.9
Machine dimension(LxWxH):	1500mm x 800mm x 1700mm

High Speed Coil Winder Wire Winding Automatic Coil Winding Machine 0

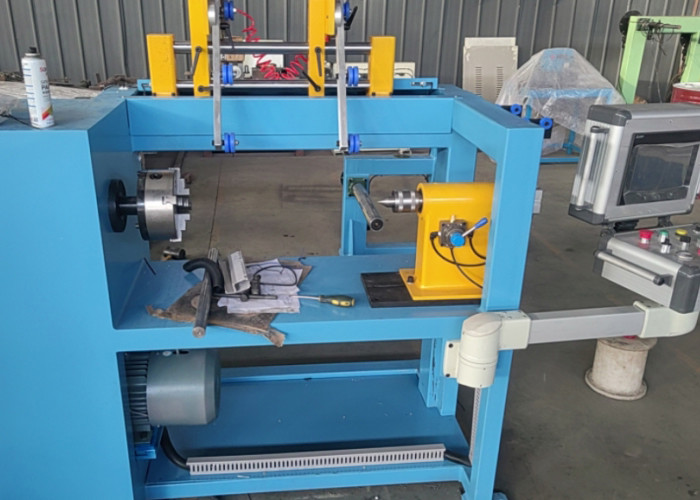

Fig 1: Automatic coil winding machine ZPX200-2's full view

High Speed Coil Winder Wire Winding Automatic Coil Winding Machine 1

Fig 2: Automatic coil winding machine ZPX200-2's insulation decoiler

High Speed Coil Winder Wire Winding Automatic Coil Winding Machine 2
