Product Details:
Payment & Shipping Terms:
|
| Product Name: | Coil Winding Machine | Function: | Winding Wire Coil |
|---|---|---|---|
| Motor Power: | 5.5kw | Winding Speed: | 0 ~ 400rpm |
| Conductor: | Copper Or Aluminium Wire | Wire Type: | Round Wire |
| Wire Size: | 0.3mm ~ 3.0mm | Warranty: | 12 Months |
| Highlight: | Wire Winding Coil Winder,High Speed Coil Winder,Automatic Coil Winder |
||
High Speed Coil Winder Wire Winding Automatic Coil Winding Machine
Description of automatic coil winding machine ZPX200-2
Automatic coil winding machine ZPX200-2 is a high effective wire winder equipment. With two wire guides, the automatic coil winding machine can wind 2 coils at the same time. The automatic coil winding machine is provided with PLC control system and HMI, which make the winding machine be with high automation. The automatic coil winding machine features high automation, full functions, easy operation and strong driving force, etc.
Technical Parameter of automatic coil winding machine ZPX200-2
Typical standard specifications of coil winding machine ZPX200-2 are shown below and the automatic coil winding machine can also be manufactured as requested.
| Centre height: | 1000mm |
| Wire guide: | 2 pcs |
| Maximum per coil height: | 200mm |
| Round wire diameter: | Ø0.3 ~ 3.0mm |
| Max. finished coil OD.: | Ø250mm |
| Max. coil weight: | 150kg |
| Winding shaft size: | 40x40mm |
| Winding speed: | 0 ~ 400RPM |
| Speed regulation: | Variable frequency and stepless speed regulation |
| Motor power: | 5.5kw |
| Automatic wire laying: | Diameter of wire adjustable, Min. step: 0.01mm |
| Counting mode: | 5-digit counting |
| Counting range: | 0 - 9999.9 |
| Machine dimension(LxWxH): | 1500mm x 800mm x 1700mm |

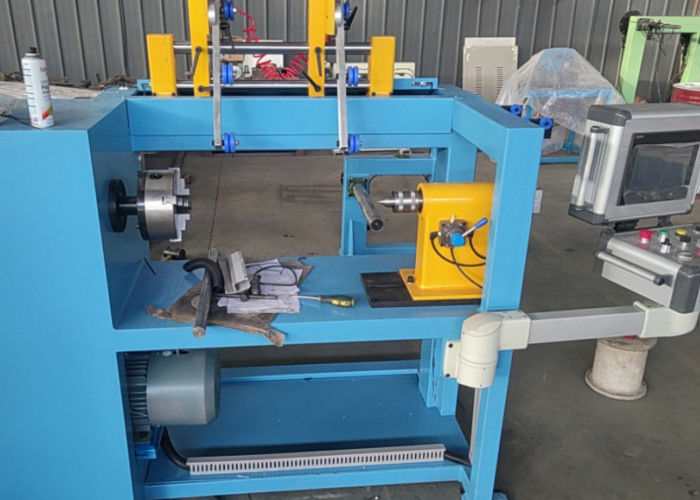

Fig 1: Automatic coil winding machine ZPX200-2's full view
Fig 2: Automatic coil winding machine ZPX200-2's insulation decoiler
