Name: Horizontal Transformer Winding Winder PLC Control Automatic Coil Winding Machine
Brand: Suzhou Tronsing Technology Co., Ltd
SKU: ZPX200-2
Price: 10,000.00 USD
Availability: InStock

Horizontal Transformer Winding Winder PLC Control Automatic Coil Winding Machine

1 set

MOQ

negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Coil Winding Machine

Usage: Winding Wire Coil

Motor Power: 5.5kw

Winding Speed: 0 ~ 400rpm

Conductor: Copper Or Aluminium Wire

Wire Type: Round Wire

Wire Size: 0.3mm ~ 3.0mm

Warranty: 12 Months

Highlight:

PLC Control Coil Winding Machine

Automatic Coil Winding Machine

Horizontal Coil Winding Machine

Basic Infomation

Place of Origin: China

Brand Name: STT

Certification: CE

Model Number: ZPX200-2

Payment & Shipping Terms

Packaging Details: seaworthy packing

Delivery Time: 35 days

Payment Terms: T/T, L/C

Supply Ability: 100 sets per year

Gallery

Horizontal Transformer Winding Winder PLC Control Automatic Coil Winding Machine

Product Description

Horizontal Transformer Winding Winder PLC Control Automatic Coil Winding Machine

Description of automatic coil winding machine ZPX200-2

Automatic coil winding machine ZPX200-2 is an especially wire winder equipment. The coils wound by the automatic coil winding machine can be used in transformers and other similar products. The automatic coil winding machine is provided with servo motors for driving wire guide,which guarantees the wire guide move precisely. The automatic coil winding machine features high automation, full functions, easy operation and strong driving force, etc.

Technical Parameter of automatic coil winding machine ZPX200-2

Typical standard specifications of coil winding machine ZPX200-2 are shown below and the automatic coil winding machine can also be manufactured as requested.

Centre height:	1000mm
Wire guide:	2 pcs
Maximum per coil height:	200mm
Round wire diameter:	Ø0.3 ~ 3.0mm
Max. finished coil OD.:	Ø250mm
Max. coil weight:	150kg
Winding shaft size:	40x40mm
Winding speed:	0 ~ 400RPM
Speed regulation:	Variable frequency and stepless speed regulation
Motor power:	5.5kw
Automatic wire laying:	Diameter of wire adjustable, Min. step: 0.01mm
Counting mode:	5-digit counting
Counting range:	0 - 9999.9
Machine dimension(LxWxH):	1500mm x 800mm x 1700mm

Horizontal Transformer Winding Winder PLC Control Automatic Coil Winding Machine 0

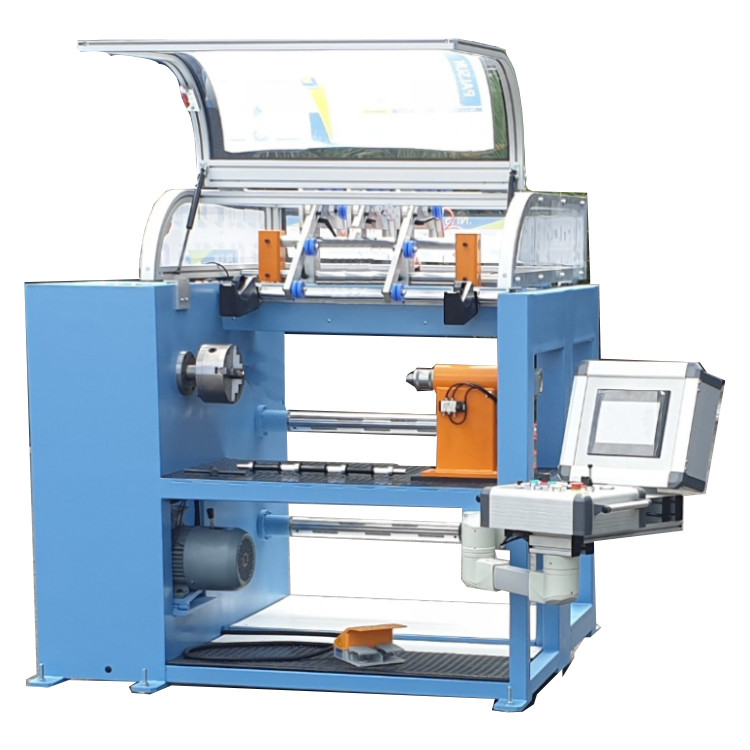

Fig 1: Automatic coil winding machine ZPX200-2's full view

Horizontal Transformer Winding Winder PLC Control Automatic Coil Winding Machine 1

Fig 2: Automatic coil winding machine ZPX200-2's insulation decoiler

Horizontal Transformer Winding Winder PLC Control Automatic Coil Winding Machine 2
