Product Details:
Payment & Shipping Terms:
|
| Name: | Coil Winding Machine | Usage: | Winding Wire Coil |
|---|---|---|---|
| Motor Power: | 5.5kw | Winding Speed: | 0 ~ 400rpm |
| Conductor: | Copper Or Aluminium Wire | Wire Type: | Round Wire |
| Wire Size: | 0.3mm ~ 3.0mm | Warranty: | 12 Months |
| High Light: | PLC Control Coil Winding Machine,Automatic Coil Winding Machine,Horizontal Coil Winding Machine |
||
Horizontal Transformer Winding Winder PLC Control Automatic Coil Winding Machine
Description of automatic coil winding machine ZPX200-2
Automatic coil winding machine ZPX200-2 is an especially wire winder equipment. The coils wound by the automatic coil winding machine can be used in transformers and other similar products. The automatic coil winding machine is provided with servo motors for driving wire guide,which guarantees the wire guide move precisely. The automatic coil winding machine features high automation, full functions, easy operation and strong driving force, etc.
Technical Parameter of automatic coil winding machine ZPX200-2
Typical standard specifications of coil winding machine ZPX200-2 are shown below and the automatic coil winding machine can also be manufactured as requested.
| Centre height: | 1000mm |
| Wire guide: | 2 pcs |
| Maximum per coil height: | 200mm |
| Round wire diameter: | Ø0.3 ~ 3.0mm |
| Max. finished coil OD.: | Ø250mm |
| Max. coil weight: | 150kg |
| Winding shaft size: | 40x40mm |
| Winding speed: | 0 ~ 400RPM |
| Speed regulation: | Variable frequency and stepless speed regulation |
| Motor power: | 5.5kw |
| Automatic wire laying: | Diameter of wire adjustable, Min. step: 0.01mm |
| Counting mode: | 5-digit counting |
| Counting range: | 0 - 9999.9 |
| Machine dimension(LxWxH): | 1500mm x 800mm x 1700mm |

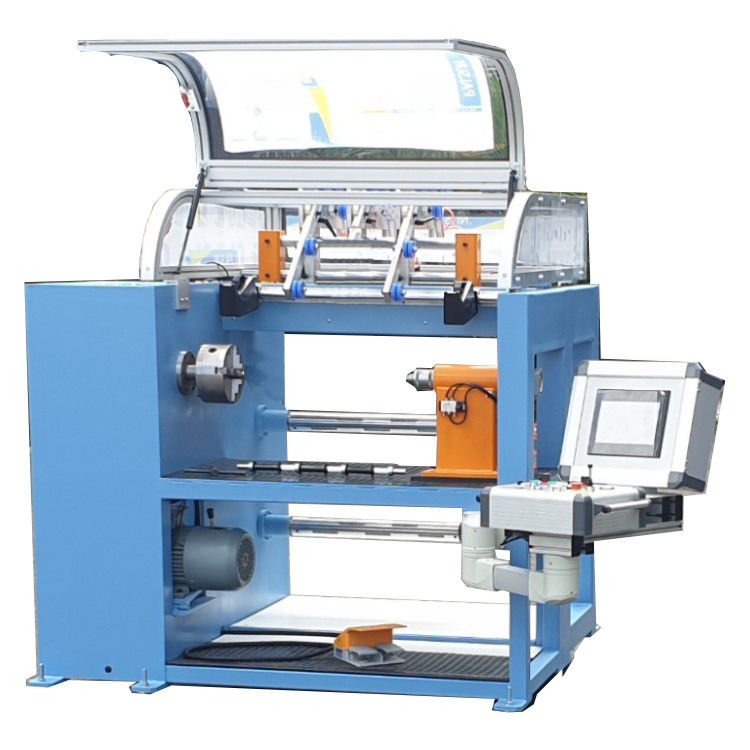

Fig 1: Automatic coil winding machine ZPX200-2's full view
Fig 2: Automatic coil winding machine ZPX200-2's insulation decoiler
