Maximum 800mm Transverse Length CNC Programmable Transformer Coil Winding Machine

Maximum 800mm Transverse Length CNC Programmable Transformer Coil Winding Machine

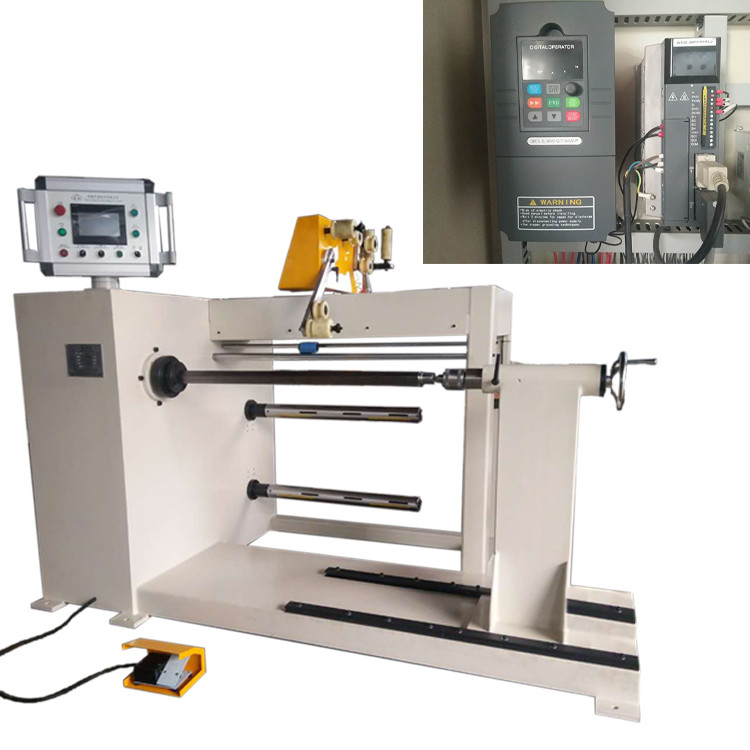

Description of coil winding machine ZPX800

Automatic transformer coil winding machine ZPX800 is a professional machine for winding transformer coils and other similar products. The winding machine is provided with a wire guide driven by a servo motor, which guarantees the excellent stop start behaviour. The tailstock can be movable, which is suitable for winding different size of coils. The foot pedal can be used to start and stop the machine, moreover, it can also be used to switching the rotating direction of the machine.

Main features of coil winding machine ZPX800

• Slow starting, for the sake of safety, the starting speed is slow,
• Smooth running,
• Full function, with PLC, the machine can provide many different functions as requested,
• High automation, only need input necessary parameters, the machine can run automatically
• Easy operation

Technical parameters of coil winding machine ZPX800

Typical standard specifications of coil winding machine ZPX800 are shown below, however these can be easily modified as requested.
