Product Details:
Payment & Shipping Terms:
|
| Machine Name: | Transformer Coil Winding Machine | Motor Power: | 4kw |
|---|---|---|---|
| Servo Motor Power: | 0.75kw | Winding Speed: | 0- 160rpm |
| Conductor Material: | Cu Or Al Wire | Wire Type: | Flat Or Round Wire |
| Counter Range: | 0~9999.9 | Wire Guide: | Driven By Servo Motor |
| Highlight: | Maximum 800mm Coil Winding Machine,CNC Programmable Coil Winding Machine |
||

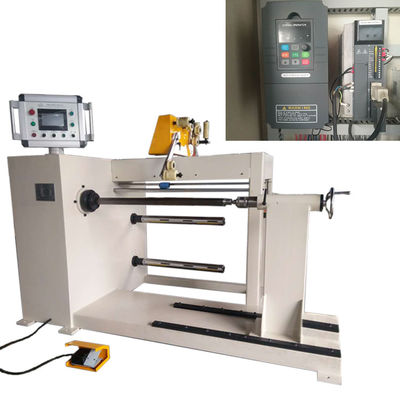

Maximum 800mm Transverse Length CNC Programmable Transformer Coil Winding Machine
Description of coil winding machine ZPX800
Automatic transformer coil winding machine ZPX800 is a professional machine for winding transformer coils and other similar products. The winding machine is provided with a wire guide driven by a servo motor, which guarantees the excellent stop start behaviour. The tailstock can be movable, which is suitable for winding different size of coils. The foot pedal can be used to start and stop the machine, moreover, it can also be used to switching the rotating direction of the machine.
Main features of coil winding machine ZPX800
Technical parameters of coil winding machine ZPX800
Typical standard specifications of coil winding machine ZPX800 are shown below, however these can be easily modified as requested.
| Shaft Height from Floor: | 900mm |
| Shaft size: | 40x40x1150mm |
| Transverse Length: | 800mm |
| Winding Power: | 4Kw |
| Maximum Winding Speed: | 160 rpm |
| Speed Regulation: | stepless |
| Max. Flat Wire Size: | 5X12mm |
| Round Wire Diameter: | 0.3～5.0mm |
| Maximum Rotating OD.: | 800mm |
| Maximum Loading Capacity: | 700kg |
| Minimum Spread Pitch: | 0.01mm |
| Counting Mode: | 5-digit counting |
| Maximum Turns Preset: | 9999.9 |
| Counting Range: | 0 ～ 9999.9 |
