Description of transformer foil winding machine BRJ200

Automatic transformer foil winding machine BRJ200 is one kind of cold pressure welding foil winding machine, which can be used to wind transformer coils and other similar products. A servo motor is adopted to drive the machine, which guarantees the precision of the winding. Cold pressure welding is used to weld both different material, such as copper foil and aluminium bus bar and same material, such as copper foil and copper bus bar together. With a touch screen and PLC control system, it is very easy to operate the foil winding machine.

Quick details of transformer foil winding machine BRJ200

• Automatic winding foil
• Foil material ID 500mm
• Foil material OD 1000mm, maximum
• Winding speed 0 ~ 60rpm
• Winding power 4kw
• Automatic cold welding unit
• One year warranty

Technical parameters of transformer foil winding machine BRJ200

Typical standard specifications of transformer foil winding machine BRJ200 are shown below, however, the machine can also be manufactured as requested.

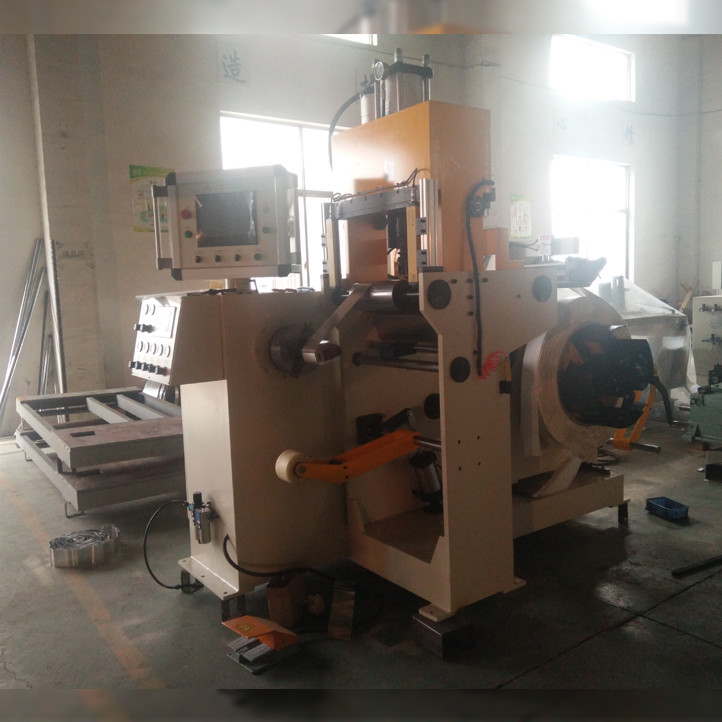

Fig 1: Transformer foil winding machine BRJ200's front view

Fig 2: Transformer foil winding machine BRJ200's cold pressure welding unit
