PLC Control Automatic Coil Winding Machine Oil Immersed Transformer Wire Coil Winder

PLC Control Oil Immersed Transformer Wire Coil Winder Automatic Coil Winding Machine

Description of automatic coil winding machine ZPX800

Automatic coil winding machine ZPX800 is a special wire coil winder, which is mainly used to wind copper or aluminium wire to make transformer coils and other similar products. The automatic coil winding machine is provided with a movable tail stock, which makes it easy to take away the wound coil from the winding shaft. The automatic coil winding machine’s control system is based on PLC, which can achieve many automatic functions. The wire guide of the automatic coil winding machine is driven by one servo motor. With one touch screen and HMI, the automatic coil winding machine can be operated very easily.

Features of automatic coil winding machine ZPX800

• slow starting
• smooth running
• full function
• high automation
• PLC control system
• 50+ winding programs stored

Main parameters of automatic coil winding machine ZPX800

The standard specifications of automatic coil winding machine ZPX800 is as following,however, the automatic coil winding machine can also be manufactured as requested.

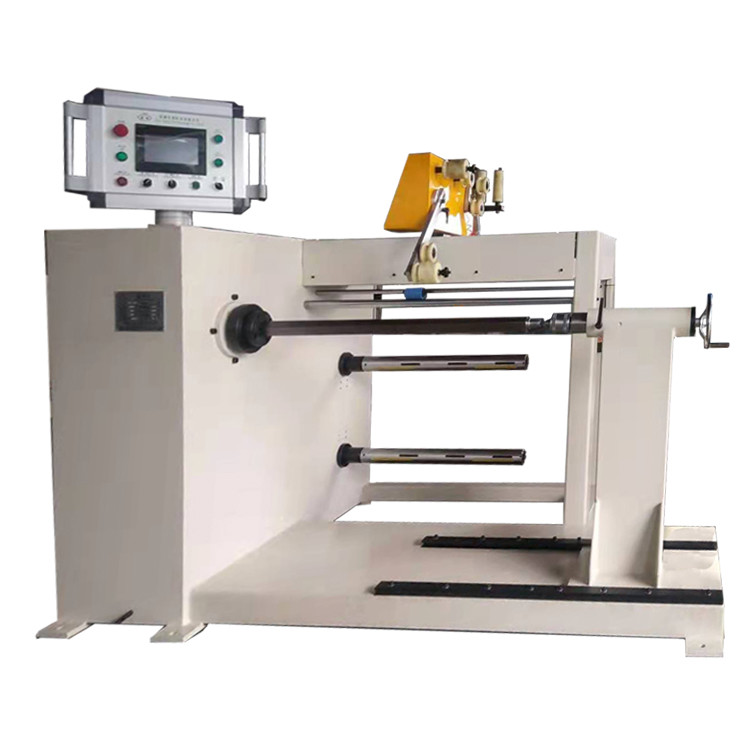

Fig 1: Automatic coil winding machine ZPX800's front view

Fig 2: Automatic coil winding machine ZPX800's wire guide
